Same model may have multiple batches, images only for reference.

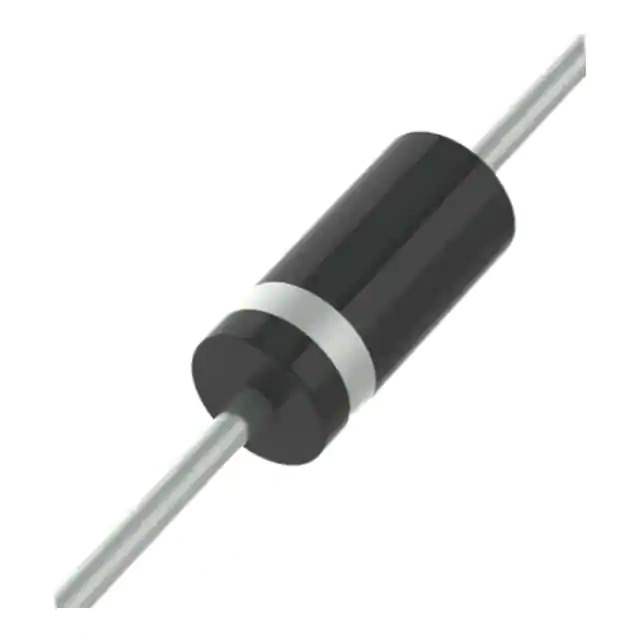

1N5404 Real Image
Same model may have multiple batches, images only for reference.

1N5404

Part No 1N5404
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 3A DO27
Datasheet
1N5404 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series DO-27
Package Tape & Box (TB)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 3 A
Capacitance @ Vr, F 30pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-27 (DO-201AD)
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 847226-1N5404
Ultra Librarian 3D Model Ultra Librarian 1N5404 CAD Model

Description

The MDD 847226-1N5404 Diode Rectifier is a high-quality diode designed for various applications.

  • Product Name: MDD 847226-1N5404
  • Series: DO-27
  • Package: Tape and Box
  • Standard Package: 1,000 pieces
  • Voltage Rating: 400V
  • Average Rectified Current: 3A
  • Voltage Forward: 1.2V @ 3A
  • Capacitance: 30pF @ 4V, 1MHz
  • Operating Temperature: -65°C to 150°C
  • Mounting Type: Through-Hole
