Maxim Integrated MAX9725EEBC+TG45

The Maxim Integrated MAX9725EEBC+TG45 is a high-performance, DirectDrive® stereo headphone amplifier that offers a perfect blend of efficiency and sound quality. It is designed to provide a superior audio experience for portable and space-constrained applications such as mobile phones, tablets, laptops, and other personal multimedia devices.

This compact amplifier integrates a high-fidelity audio amplifier with DirectDrive technology, eliminating the need for large DC-blocking capacitors. DirectDrive architecture connects the headphone outputs directly to the amplifier's outputs, creating a ground-referenced output that does not require bulky and costly capacitors. This not only saves space on the PCB but also ensures a more accurate and cleaner sound reproduction by reducing potential distortions and colorations in the audio signal.

The MAX9725EEBC+TG45 operates from a single 2.7V to 5.5V supply, making it versatile for various applications and battery configurations. It delivers up to 130mW per channel into a 16Ω load, ensuring ample power to drive a wide range of headphones with different impedance levels. Additionally, the device features a low 0.01% THD+N (Total Harmonic Distortion plus Noise) at 1kHz, which guarantees a high-quality audio output with minimal distortion.

With built-in click-and-pop suppression, the MAX9725EEBC+TG45 minimizes the noises that can occur during power-up or shutdown, providing a smoother user experience. The amplifier also includes a low-power shutdown mode, which significantly reduces power consumption when not in use, thereby extending battery life for portable devices.

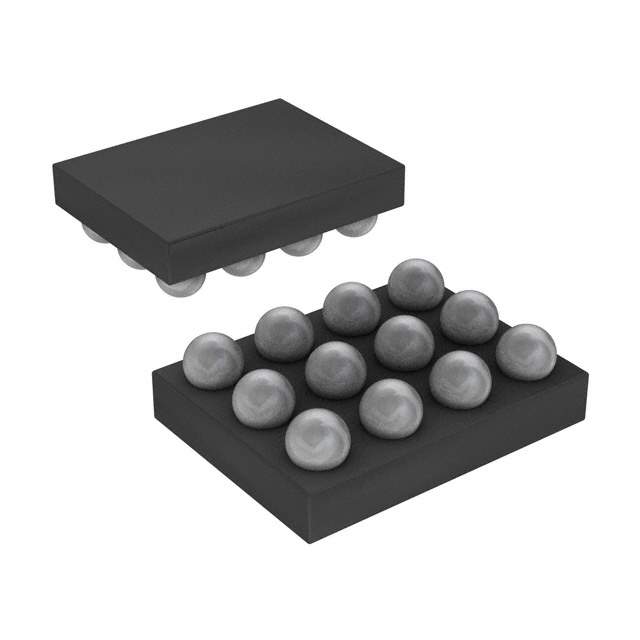

The MAX9725EEBC+TG45 comes in a tiny 12-bump UCSP (Ultra Chip-Scale Package), measuring just 2mm x 2mm, which is ideal for applications where board space is at a premium. Its small form factor, combined with high audio performance and power efficiency, makes it an excellent choice for designers looking to enhance the audio quality of their products without compromising on space or power consumption.
