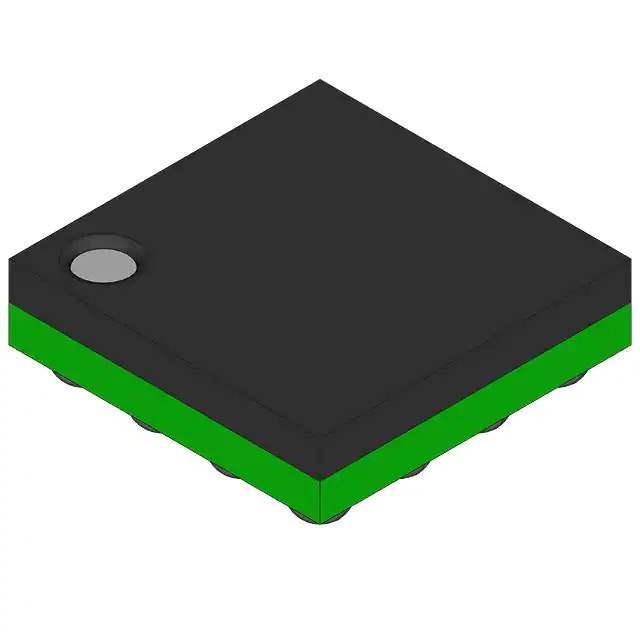

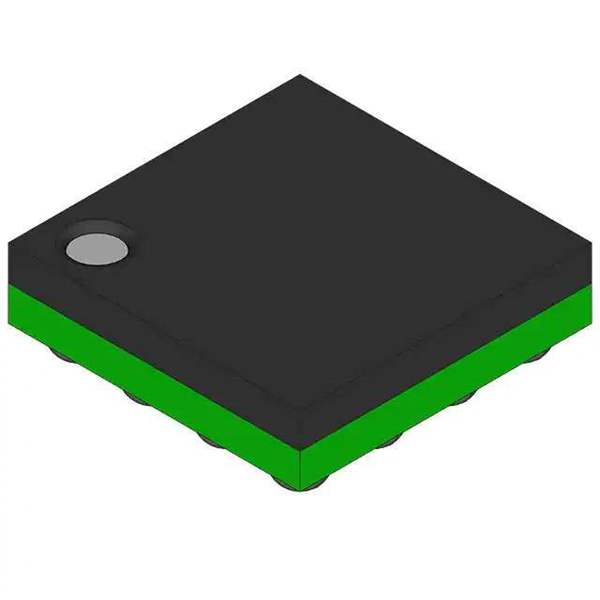

Maxim Integrated MAX9720AEBE Stereo Headphone Amplifier

The Maxim Integrated MAX9720AEBE is a high-performance, low-power stereo headphone amplifier designed to provide a superior audio experience for a wide range of applications. With its compact and efficient design, the MAX9720AEBE is an ideal solution for portable electronic devices where space and power consumption are critical considerations.

This versatile amplifier is capable of delivering up to 70mW of continuous power per channel into a 32Ω load, ensuring loud and clear sound reproduction without compromising on quality. The MAX9720AEBE operates from a single 2.7V to 5.5V supply, making it compatible with most battery-operated devices such as MP3 players, mobile phones, and laptops.

One of the standout features of the MAX9720AEBE is its patented DirectDrive® technology, which eliminates the need for DC-blocking capacitors. This not only reduces the number of external components required but also minimizes the overall footprint and cost of the audio subsystem. Furthermore, DirectDrive technology provides a ground-referenced output that results in a click-and-pop-free startup and shutdown, enhancing the user experience.

The device also incorporates comprehensive click-and-pop suppression that further reduces noise during power or mode transitions. Additionally, the MAX9720AEBE has a low 0.01% total harmonic distortion plus noise (THD+N) and a high 98dB power-supply rejection ratio (PSRR), ensuring high-fidelity audio playback even in noisy environments.

For added flexibility, the MAX9720AEBE features an internal gain setting that can be configured via external gain-setting resistors. This allows designers to tailor the gain to suit the specific requirements of their application without the need for additional components.

The MAX9720AEBE is available in a compact 16-pin QSOP package and is specified over the extended -40°C to +85°C temperature range. This robust temperature range, combined with its high-quality audio performance, makes the MAX9720AEBE a reliable choice for designers looking to enhance the audio capabilities of their next-generation portable electronic devices.

Overall, the Maxim Integrated MAX9720AEBE stereo headphone amplifier is a powerful, efficient, and versatile component that delivers exceptional audio quality with minimal design complexity.
