Product Overview: MAX8630XETD18+T by Maxim Integrated

The MAX8630XETD18+T is a high-performance, compact, LED driver integrated circuit (IC) from Maxim Integrated, designed to deliver precise current regulation and a rich feature set that makes it ideal for a variety of applications. This IC is particularly suited for driving white LEDs in portable devices such as smartphones, tablets, and digital cameras, as well as for backlighting LCD displays.

Key Features

• High Efficiency: The MAX8630XETD18+T is designed to maximize power efficiency, which is crucial for battery-powered devices, helping to extend battery life.
• Integrated Switches: This LED driver includes integrated MOSFET switches, which simplifies the circuit design and reduces external component count.
• Adjustable Brightness: It provides a wide range of brightness levels, which can be adjusted via a PWM (Pulse Width Modulation) input, allowing for precise control over the lighting conditions.

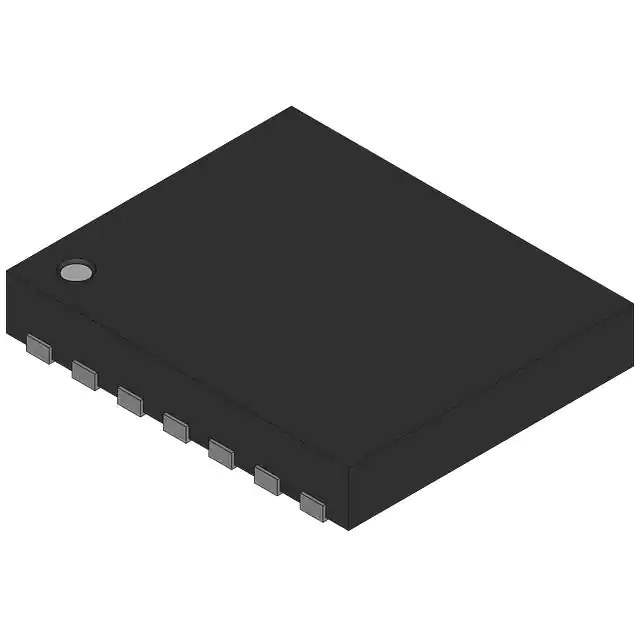

• Small Form Factor: The device comes in a small, 14-pin TDFN (Thin Dual Flat No-lead) package, which is ideal for space-constrained applications.

Performance Specifications

The MAX8630XETD18+T operates with an input voltage range from 2.6V to 5.5V, making it compatible with most portable device power supplies. It is capable of driving multiple LEDs in series, ensuring uniform brightness and simplifying the design. The IC also includes thermal shutdown protection to prevent damage from overheating, and it features a low quiescent current to minimize power consumption when in standby mode.

Applications

This LED driver is versatile and can be used in a variety of applications. It is particularly well-suited for:

• Portable device backlighting (e.g., smartphones, tablets)
• LCD display backlighting
• General LED lighting

Conclusion

The MAX8630XETD18+T from Maxim Integrated is a powerful, efficient, and versatile LED driver that offers an excellent solution for designers looking to optimize their LED lighting applications. Its integration of key features and protections ensures high performance and reliability, making it a preferred choice for portable device manufacturers and other applications requiring high-quality LED backlighting.
