Maxim Integrated MAX692MJA Microprocessor Supervisory Circuit

The MAX692MJA from Maxim Integrated is a sophisticated microprocessor (µP) supervisory circuit designed to monitor power supplies in µP and digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V-powered circuits.

This device is particularly well-suited for use in systems that require a battery backup or are critical to maintaining data integrity in the event of power failure. The MAX692MJA ensures that the µP is reset to a known state during power-up, power-down, and brownout conditions. It accomplishes this by providing a reset signal to the µP for a minimum of 200ms after VCC has reached the reset threshold level.

Key features of the MAX692MJA include:

• Power Supply Monitoring: The device keeps a watchful eye on the system's VCC. Should the power supply fall below a preset threshold, the MAX692MJA will assert a reset signal to prevent system errors.
• Battery Backup Switching: It includes a battery backup switching circuitry that automatically switches to the backup battery when the main power supply fails, ensuring uninterrupted operation.
• Manual Reset Input: A manual reset input is provided, allowing for a reset to be triggered with an external switch or logic signal.
• Low Power Consumption: The MAX692MJA is designed for low power consumption, making it ideal for portable and battery-powered applications.
• High Precision Reset: The reset threshold is factory-trimmed to ensure precise monitoring of the power supply.
• Wide Operating Temperature Range: This device can operate over a wide temperature range, making it suitable for various environments and applications.

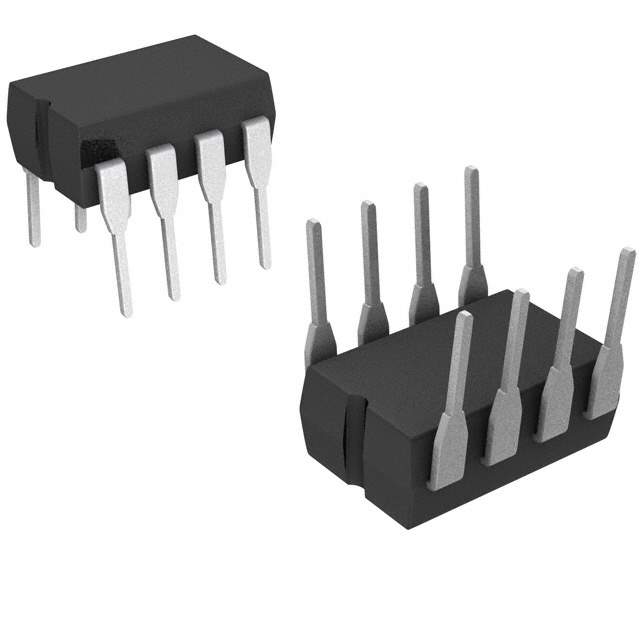

The MAX692MJA comes in a compact 8-pin CERDIP package, making it space-efficient for design in tight PCB layouts. Its robust feature set and reliability make it an excellent choice for critical systems where data integrity and system stability are paramount.

By integrating functions such as reset output, watchdog timer, and battery backup switching, the MAX692MJA from Maxim Integrated offers a comprehensive solution for µP system monitoring, which can significantly enhance the performance and reliability of digital systems.
