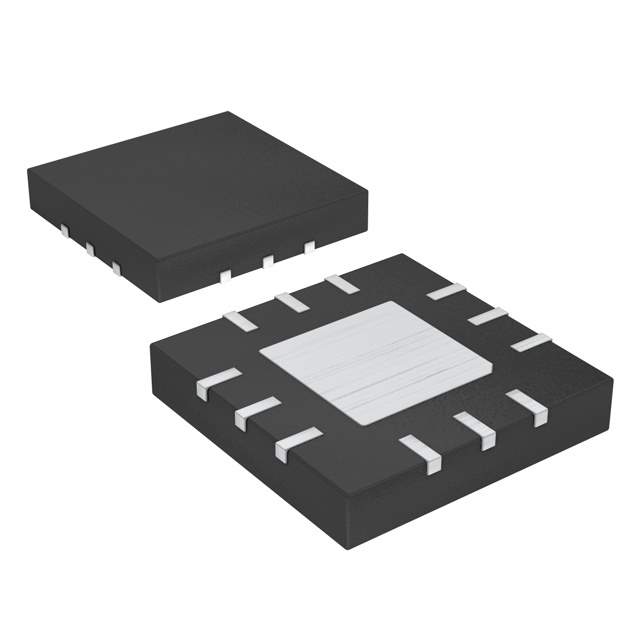

Maxim Integrated MAX5525ETC+T Digital Potentiometer

The MAX5525ETC+T from Maxim Integrated is a precision, low-power, and compact digital potentiometer that offers a versatile solution for applications requiring digitally controlled resistance settings. This device comes in a tiny 12-pin TQFN package, making it ideal for space-constrained applications where size and power efficiency are critical.

With a resistance range of 10kΩ, the MAX5525ETC+T provides a smooth and linear adjustment of the resistance through its 256-tap point configuration. This enables precise control over the resistance value with a simple digital input, facilitating its use in various electronic circuits that demand accurate resistance tuning such as volume control, LCD screen adjustment, and filter configurations.

The digital potentiometer operates with a single supply voltage ranging from 2.7V to 5.5V, making it compatible with most low-voltage systems. Additionally, it boasts a low temperature coefficient of 35ppm/°C, ensuring stable performance across a wide temperature range, which is particularly important in applications that are exposed to varying environmental conditions.

Communication with the MAX5525ETC+T is accomplished through the I²C-compatible serial interface, which is widely used and allows for easy integration into existing designs. This interface not only simplifies the connection to microcontrollers but also supports daisy-chaining of multiple devices, thus enabling the control of several digital potentiometers with minimal additional wiring.

The device features nonvolatile memory (EEPROM), which allows the resistance setting to be stored and retained even after power is removed. This is particularly useful for applications that require the potentiometer to return to a specific resistance value upon power-up without the need for microcontroller intervention.

For designers and engineers looking for a reliable and precise digital potentiometer that offers ease of use and integration, the Maxim Integrated MAX5525ETC+T is an excellent choice. Its combination of low power consumption, high precision, and compact form factor makes it a highly versatile component suitable for a wide array of electronic designs.
