Maxim Integrated MAX5520ETC+ Precision DAC

The MAX5520ETC+ is a state-of-the-art digital-to-analog converter (DAC) designed by Maxim Integrated, a company renowned for its high-performance integrated circuits. This precision DAC is ideal for applications that require accurate and stable voltage outputs, such as industrial control systems, automated test equipment, and data acquisition systems.

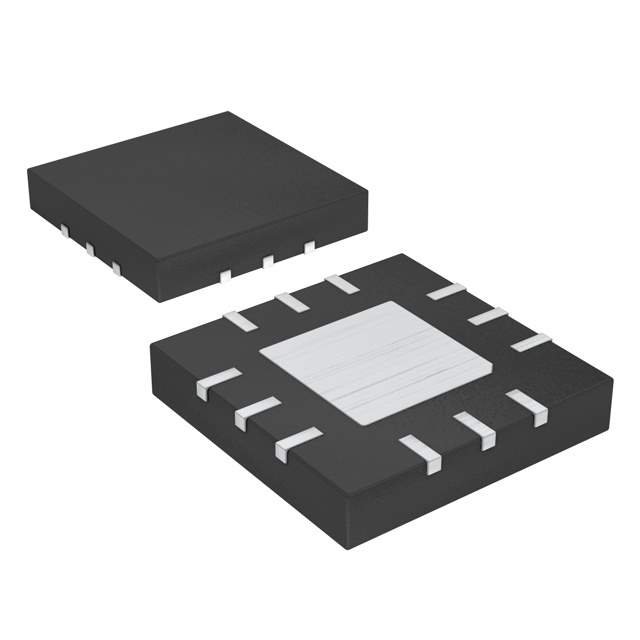

Encased in a compact 12-pin TDFN package, the MAX5520ETC+ boasts a dual 8-bit DAC configuration, allowing for fine-tuned control over two separate output channels. This device operates with a single 2.7V to 5.5V power supply, making it versatile for various power environments while maintaining low power consumption.

One of the standout features of the MAX5520ETC+ is its integrated output amplifiers, which provide a buffered voltage output that can swing rail-to-rail. This feature ensures that the full range of the power supply can be utilized, maximizing the dynamic range available for the DAC outputs. The device also incorporates a 3-wire SPI-compatible serial interface, which supports high-speed communication and simplifies the connection to microcontrollers or other digital systems.

The MAX5520ETC+ is engineered with precision in mind, offering excellent accuracy and low noise performance. This is achieved through the use of an internal precision reference, which stabilizes the output against fluctuations in temperature and supply voltage. The result is a consistent and reliable output that can be counted on for critical applications.

Maxim Integrated has also considered ease of use in the design of this product, as the MAX5520ETC+ includes a power-on reset feature that ensures the DAC outputs start at zero volts upon power-up, reducing the potential for unexpected behavior in sensitive applications. Additionally, the device has a shutdown mode that significantly reduces power consumption when the DAC is not in use.

In summary, the MAX5520ETC+ from Maxim Integrated is a robust and precise dual 8-bit DAC solution, packed with features that make it suitable for a wide array of applications requiring high accuracy and reliability in voltage control.
