Maxim Integrated MAX5155AEEE+ Dual, 12-Bit, Low-Power, Voltage-Output DAC

The MAX5155AEEE+ from Maxim Integrated is a high-performance, dual-channel, 12-bit digital-to-analog converter (DAC) designed to deliver precision voltage outputs with a low-power footprint. This component is particularly suitable for battery-powered devices and applications requiring high accuracy and stability over temperature, such as industrial control systems, automated test equipment, and data acquisition systems.

Key Features

• Dual 12-Bit DAC Channels: The MAX5155AEEE+ houses two independent DAC channels, allowing for simultaneous output of two separate analog voltages, which can be beneficial in systems that require dual control loops or signal generation.
• Low Power Consumption: With its focus on power efficiency, this DAC is ideal for portable and remote applications, ensuring minimal impact on battery life and system power budgets.
• Flexible Reference Input: The device supports both unipolar and bipolar operation, providing design versatility through an external reference input that sets the full-scale output voltage.
• Serial Interface: Communication with microcontrollers or digital systems is streamlined through a 3-wire serial interface, which simplifies the digital interconnection and reduces the number of required I/O pins.

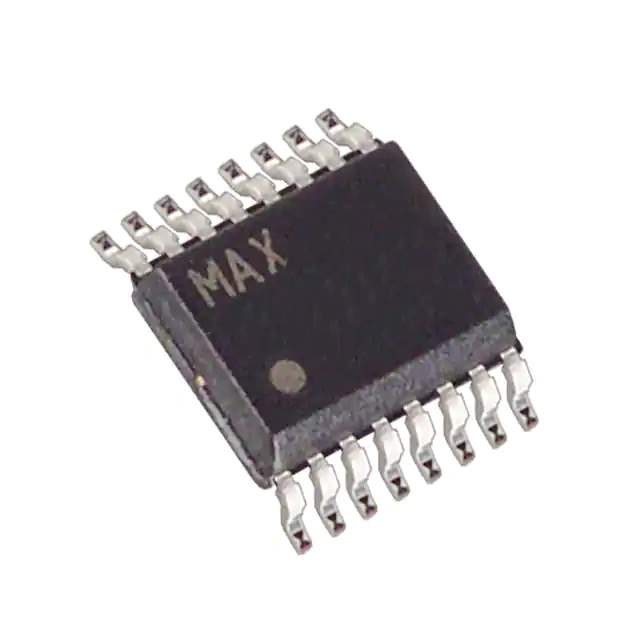

• Compact Package: The MAX5155AEEE+ is offered in a 16-pin QSOP package, which is conducive to space-constrained applications.

Performance Specifications

• Resolution: 12 bits
• Settling Time: Fast output settling time ensures timely response in dynamic systems.
• Output Range: Configurable output range with the external reference voltage.
• Accuracy: Integral nonlinearity (INL) and differential nonlinearity (DNL) specifications ensure accurate and consistent performance.

The MAX5155AEEE+ is engineered to perform reliably in a wide range of operating conditions, with a temperature range from -40°C to +85°C. Its robust feature set and performance make it an excellent choice for designers looking to integrate precise analog outputs into their digital systems. Maxim Integrated's commitment to quality ensures that the MAX5155AEEE+ is a reliable and efficient solution for your DAC needs.
