Product Overview: MAX4760EWX+T by Maxim Integrated

The MAX4760EWX+T from Maxim Integrated is a high-performance, low-voltage, dual 2:1 multiplexer/demultiplexer (mux/demux) switch IC. This precision analog component is designed to facilitate the routing of differential or single-ended signals through a common signal path, making it an ideal choice for a variety of applications, including signal routing in data acquisition systems, communication devices, and audio/video switching.

Key Features

• Wide Operating Range: The device operates with a single +1.8V to +5.5V supply, providing design flexibility for various system voltage levels.
• Low On-Resistance: The MAX4760EWX+T features low on-resistance (Ron) of 4 ohms typical, ensuring minimal signal attenuation and power loss across the switch.
• High Bandwidth: With a high bandwidth of 200MHz, this switch can handle high-speed signals without significant distortion, making it suitable for video and high-frequency applications.
• ESD Protection: Enhanced ESD protection is built into the device, with ±15kV Human Body Model (HBM) on the switch I/O, which helps to prevent damage from electrostatic discharges during handling and operation.
• Low Crosstalk and Off-Isolation: The device offers excellent signal integrity with low crosstalk and high off-isolation, ensuring minimal interference between channels.

Applications

The MAX4760EWX+T is versatile and can be used in a wide range of applications, including:

• Audio/Video Signal Routing
• Data Communication Systems
• Medical Equipment
• Relay Replacement
• Test Equipment

Package and Availability

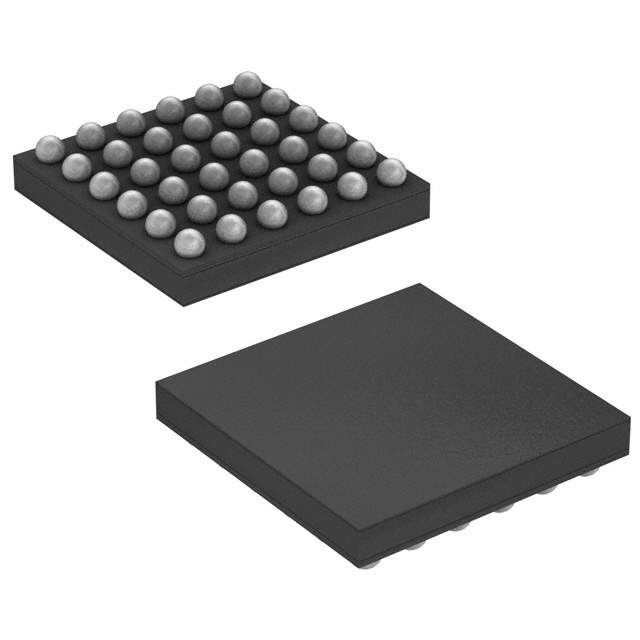

The device is offered in a small, 36-bump WLP (Wafer-Level Package) with a 6mm x 4mm body size, making it suitable for space-constrained applications. The MAX4760EWX+T is also available in tape and reel packaging, denoted by the '+T', which facilitates efficient handling and manufacturing processes.

In summary, the MAX4760EWX+T by Maxim Integrated is a high-quality, versatile mux/demux switch IC that offers robust performance for a variety of signal routing applications. Its low on-resistance, high bandwidth, and ESD protection make it a reliable choice for designers looking to optimize their systems for both performance and space.
