The MAX3815CCM+D is a high-performance cable equalizer designed to combat signal degradation and loss over long distances in digital displays and video distribution systems. Manufactured by Maxim Integrated, this compact device is crucial for maintaining signal integrity in applications that require the transmission of high-definition video signals over standard coaxial or twisted-pair cables.

The MAX3815CCM+D operates by automatically providing compensation for cable losses up to 35dB at 825MHz. This feature makes it an ideal solution for extending the reach of digital video signals without compromising on quality. With its ability to support data rates up to 2.97Gbps, the device is perfectly suited for handling high-resolution video formats, including 1080p and WUXGA (1920x1200).

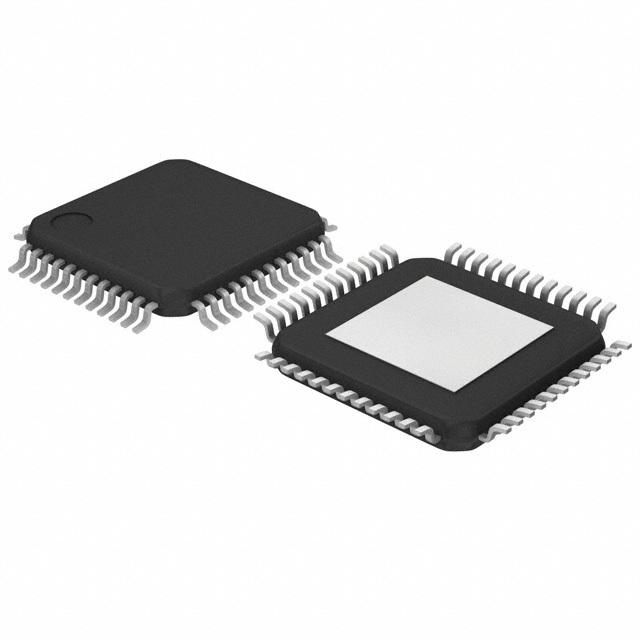

This cable equalizer comes in a 48-pin LQFP (Low-Profile Quad Flat Package) which offers a compact footprint, making it suitable for space-constrained applications. The MAX3815CCM+D is also designed with the flexibility to operate across a wide range of temperatures, from 0°C to +70°C, ensuring reliable performance under varying environmental conditions.

Key features of the MAX3815CCM+D include:

• Automatic cable equalization to maximize signal integrity
• Support for high data rates up to 2.97Gbps
• Low-power operation, typically consuming just 135mW
• Single +3.3V supply voltage for ease of integration
• Integrated output driver with programmable edge rates
• On-chip input termination for simplified board design

Whether it's for digital signage, professional video editing suites, or high-end home theater systems, the Maxim Integrated MAX3815CCM+D is engineered to deliver exceptional performance and reliability. With its robust design and advanced features, it stands as a critical component for any system requiring the long-distance transmission of high-definition digital video signals.
