ADM1278-1BCPZ Hot Swap Controller and Digital Power Monitor

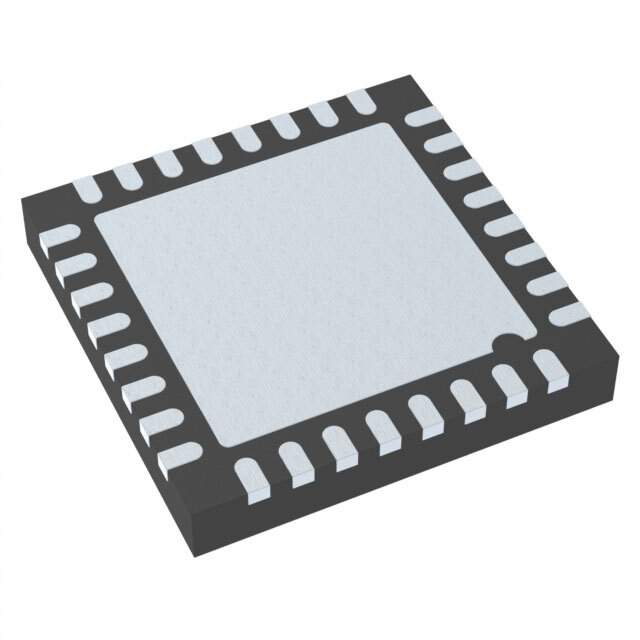

The ADM1278-1BCPZ from Analog Devices Inc. is a state-of-the-art Hot Swap Controller and Digital Power Monitor that provides an advanced solution for power management and protection in high-reliability systems. This device is designed to allow safe board insertion and removal from live backplanes and is housed in a compact 32-lead LFCSP package.

The ADM1278-1BCPZ features an integrated 12-bit analog-to-digital converter (ADC) that monitors both the current through the sense resistor and the supply voltage. This high-accuracy monitoring enables the device to provide real-time power measurements, which can be communicated to the system through a PMBus interface. This digital interface allows for extensive programmability and readback capability, offering designers flexibility and control over their power management systems.

With its adjustable current limit, the ADM1278-1BCPZ ensures protection against overcurrent conditions. The current limit threshold can be set via an external resistor or programmed through the PMBus. The device also features a programmable circuit breaker function that provides fast response to overcurrent events, protecting both the load and the power source.

In addition to overcurrent protection, the ADM1278-1BCPZ offers overvoltage and undervoltage monitoring, ensuring that the power supply remains within safe operating limits. The device also has a built-in temperature sensor for detecting thermal conditions, further enhancing system reliability.

Other key features of the ADM1278-1BCPZ include:

• FET control for inrush current limiting during board insertion
• Black Box recorder functionality for fault recording
• Adjustable fault response times
• Power good and power fail signals

The ADM1278-1BCPZ is ideal for high-performance servers, telecom equipment, and data centers where reliable power management and monitoring are critical. Its robust feature set and ease of use make it an excellent choice for designers looking to improve system uptime and protection while minimizing space on the PCB.

With its combination of advanced protection features, real-time monitoring, and digital communication, the ADM1278-1BCPZ is a powerful component for any sophisticated power management system.
