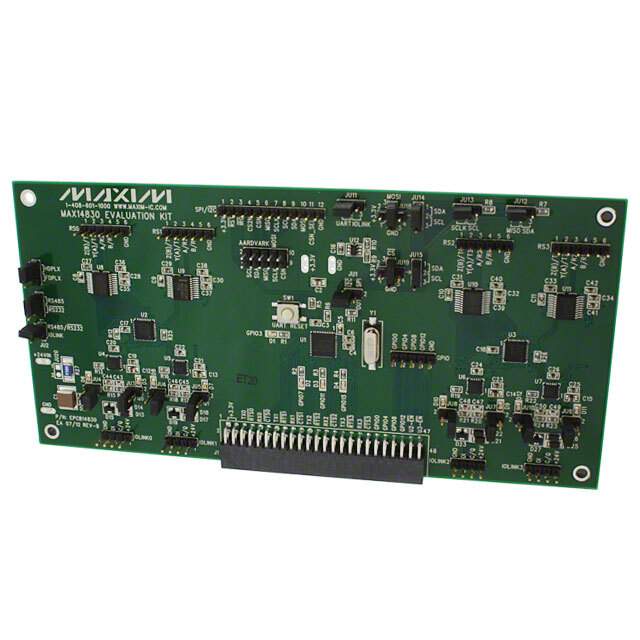

The MAX14830EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX14830, which is a quad-channel serial UART with 128 words of TX and RX FIFOs, flexible clocking options, and support for multiple serial protocols. This evaluation kit enables designers to thoroughly test the features of the MAX14830 in a convenient and user-friendly setup.

Key Features

• Quad UART interface for easy communication with up to four serial devices.
• Large 128-word FIFOs for each TX and RX to enhance data buffering.
• Flexible clocking options including a crystal oscillator, external clock, or internal oscillator.
• Support for multiple serial protocols to ensure compatibility with a wide range of applications.
• Convenient USB connectivity for quick connection to a host computer.
• On-board micro-USB connector for power supply and communication.
• LED indicators for power, TX, and RX signals for easy visual monitoring of board activity.
• Jumpers and headers for configuration and testing of various functional modes.

Applications

The MAX14830EVKIT# is ideal for developing and testing applications that require multiple UART interfaces. These applications include industrial automation systems, point-of-sale terminals, and complex communication systems that need reliable serial data transfer capabilities.

Package Contents

The evaluation kit includes the evaluation board for the MAX14830, a USB cable for power and communication, and comprehensive documentation that includes the schematics, layout files, and bill of materials. The kit also comes with software that provides a user-friendly interface for configuring the UARTs and monitoring the data flow across the serial ports.

Getting Started

To get started with the MAX14830EVKIT#, simply connect the evaluation board to a PC using the provided USB cable. Install the necessary software and drivers, and use the provided graphical user interface to configure the UART settings. The kit allows for immediate testing of the MAX14830's features and performance, ensuring a smooth development process for your serial communication needs.
