Maxim Integrated MAX13487EEVKIT# Evaluation Kit

The MAX13487EEVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX13487E RS-485/RS-422 transceiver with AutoDirection control. This kit serves as a practical tool for designers and engineers to test and evaluate the features of this advanced communication IC in a convenient, real-world environment.

The MAX13487E transceiver included in this kit boasts a unique AutoDirection feature, which simplifies the design of RS-485/RS-422 communication systems by eliminating the need for additional control lines to switch between transmission and reception modes. This half-duplex transceiver is capable of achieving data rates up to 16Mbps, making it suitable for high-speed communication applications.

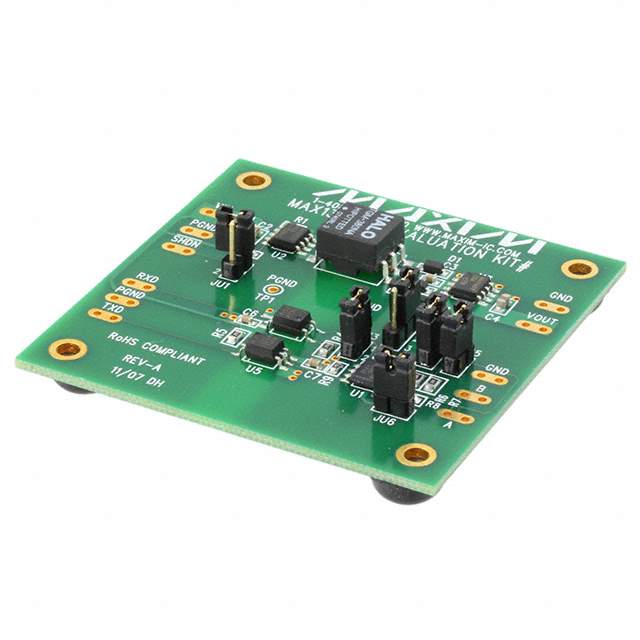

The evaluation kit consists of a fully assembled and tested printed circuit board (PCB) that showcases the MAX13487E IC. The board includes test points and jumper options, allowing users to easily configure the transceiver's settings and monitor its performance. The PCB is designed with robust protection features, including integrated electrostatic discharge (ESD) protection circuits that safeguard the device against transient voltage spikes.

Key features of the MAX13487EEVKIT# include:

• AutoDirection control for simplified RS-485/RS-422 bus management
• High-speed operation up to 16Mbps
• Integrated ESD protection for enhanced reliability
• Flexible power supply options ranging from 3.3V to 5V
• Convenient evaluation board with multiple test points and jumper settings
• Hot-swap capability to insert the transceiver into a live bus without causing data corruption
• Thermal shutdown and short-circuit protection for added safety

The MAX13487EEVKIT# is an ideal platform for testing the transceiver's performance in various scenarios, including industrial control systems, building automation, and networked communication devices. With its easy-to-use interface and detailed documentation, the evaluation kit ensures a smooth and efficient experience for anyone looking to explore the functionalities of the MAX13487E transceiver.

Whether you are developing new communication hardware or seeking to improve existing systems, the MAX13487EEVKIT# from Maxim Integrated provides a valuable resource for achieving robust and reliable RS-485/RS-422 communications.
