Product Overview: MAX1205EMH+ from Maxim Integrated

The MAX1205EMH+ is a high-performance, low-power, 12-bit analog-to-digital converter (ADC) from Maxim Integrated, designed to deliver precision and efficiency for a broad range of applications. This ADC features a fast throughput rate, making it ideal for systems requiring high-speed data acquisition, such as medical imaging, industrial control systems, and high-speed instrumentation.

Key Features

• Resolution: The device boasts a 12-bit resolution, providing fine detail in the analog signal conversion process.
• Sampling Rate: With a maximum sampling rate of 1.25Msps (Mega samples per second), the MAX1205EMH+ ensures quick and accurate data capture.
• Low Power Consumption: Designed for power-sensitive applications, it operates with a low power consumption, which is critical for portable and battery-operated devices.
• Flexible Voltage Range: The ADC operates on a single +5V supply, offering a flexible voltage range that facilitates easy integration into various circuit designs.
• Input Range: It features an input range of ±VREF, with VREF ranging from +1V to the maximum supply voltage, providing versatility in handling different signal amplitudes.
• Interface: The device includes a parallel interface for easy connection to microprocessors and DSPs, facilitating straightforward data transfer and system integration.

Applications

The MAX1205EMH+ is suitable for a wide array of applications, including:

• Medical Imaging Systems
• Industrial Process Control
• Data Acquisition Systems
• High-speed Instrumentation
• Portable Battery-powered Devices

Package and Quality

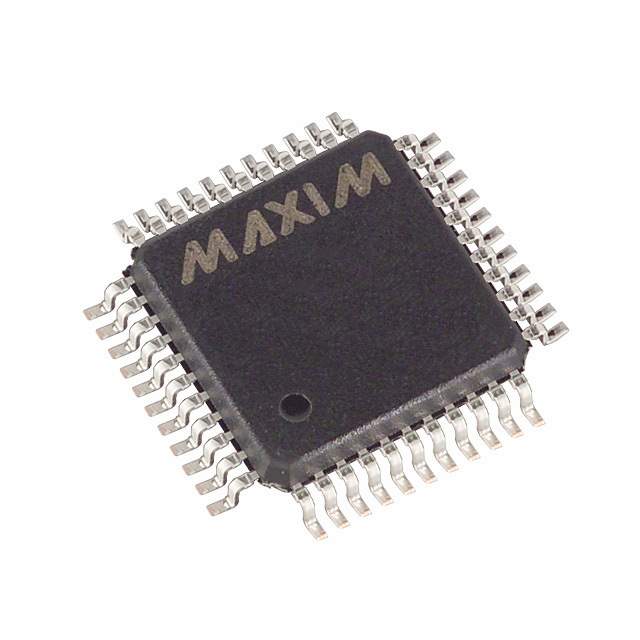

This ADC comes in a 44-pin MQFP (Metric Quad Flat Pack) package, which is known for its compact footprint and reliability in various environmental conditions. Maxim Integrated ensures that the MAX1205EMH+ meets stringent quality standards, offering robust performance for critical applications.

Conclusion

The MAX1205EMH+ from Maxim Integrated stands out as an ADC solution that combines speed, precision, and low power consumption. Its comprehensive feature set and flexible interfacing options make it a versatile choice for designers looking to enhance the performance of their data acquisition systems.
