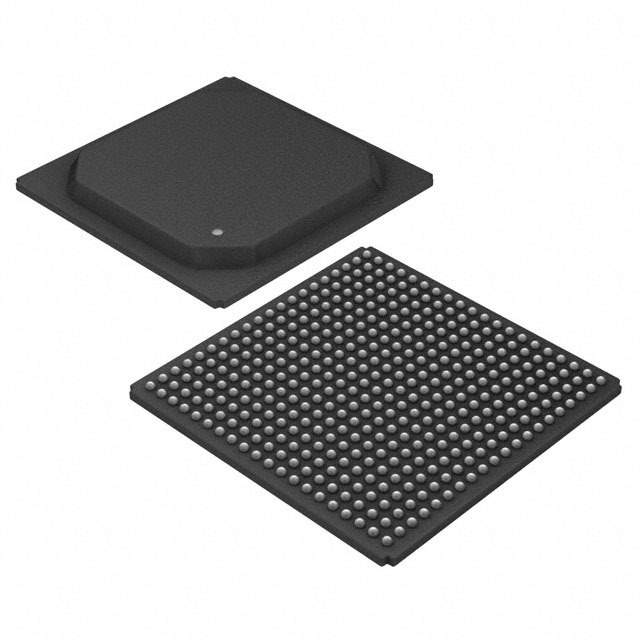

The DS33R41+ from Maxim Integrated is a cutting-edge, low-power, quad-channel, multiprotocol transceiver designed to meet the rigorous demands of industrial communication networks. This versatile device supports RS-485 and RS-422 protocols, making it an ideal solution for applications requiring high-speed, bidirectional data communication.
Key Features
- High Data Rates: The DS33R41+ supports data rates up to 100Mbps, allowing for rapid data transmission and efficient operation in time-sensitive applications.
- Extended Temperature Range: Engineered to withstand harsh environments, it operates reliably over an industrial temperature range of -40°C to +85°C.
- Low Power Consumption: Its low-power design ensures minimal energy usage, making it suitable for power-sensitive applications.
- Robust Protection: The device includes built-in electrostatic discharge (ESD) protection, which guards against voltage spikes and enhances system reliability.
- Flexible Operation: With half-duplex and full-duplex options, it can adapt to various communication requirements.
- Integrated Termination Resistors: On-chip termination resistors simplify design and reduce external component count, thus saving space on the PCB.
Applications
The DS33R41+ is ideal for a wide range of applications, including but not limited to:
- Industrial control systems
- Building automation
- Networked security cameras
- Point of sale (POS) terminals
- Automotive diagnostics
Technical Specifications
Parameter
Value
Protocols Supported
RS-485, RS-422
Data Rate
Up to 100Mbps
Temperature Range
-40°C to +85°C
Power Supply Voltage
3.3V
Package Type
QFN-EP
Maxim Integrated's DS33R41+ transceiver is a robust, high-performance solution that delivers reliable communication for industrial networking applications. Its combination of speed, power efficiency, and durability makes it a top choice for engineers and system integrators worldwide.
