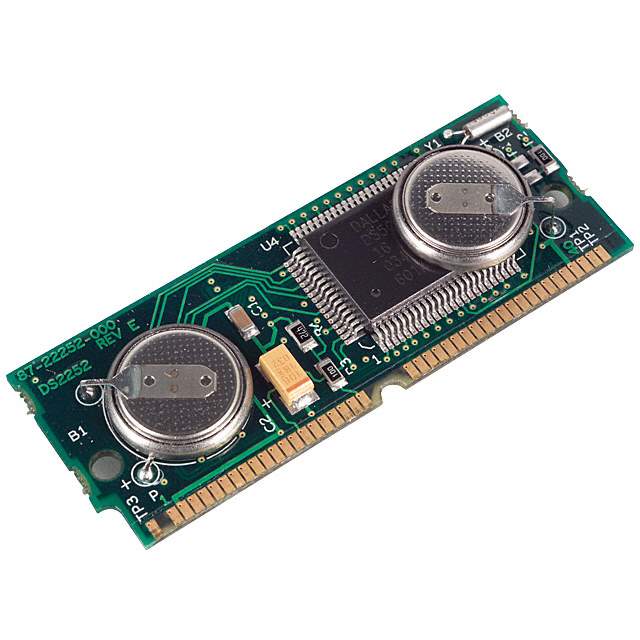

DS2250-32-16 Soft Microcontroller Module

The DS2250-32-16 from Maxim Integrated is a robust soft microcontroller module that integrates a fully 8051-compatible microcontroller with 32kB of nonvolatile SRAM and 16kB of parallel program memory. This innovative module is designed to provide a high-performance solution for a wide range of embedded applications, offering the convenience of nonvolatile memory with the processing power of a traditional microcontroller.

At the core of the DS2250-32-16 lies a high-speed processor compatible with the industry-standard 8051 instruction set, which ensures easy integration into existing platforms and a straightforward learning curve for developers already familiar with 8051-based systems. The module operates at a clock frequency of up to 16MHz, providing ample processing power for demanding applications.

The inclusion of 32kB of nonvolatile SRAM allows for data retention without the need for an external battery, making the DS2250-32-16 an ideal choice for applications where data integrity and reliability are critical, even in the event of power loss. Additionally, the 16kB of parallel program memory provides ample space for application code, which can be updated in-circuit for ease of maintenance and feature upgrades.

Moreover, the DS2250-32-16 comes equipped with a range of integrated peripherals, including a real-time clock, interval timer, and power-fail reset, which enhance the functionality of the module and reduce the need for additional components. The module's power management features ensure efficient operation, with a low-power standby mode that significantly reduces power consumption when the device is not active.

For secure applications, the DS2250-32-16 offers memory partitioning and lock features to protect sensitive data and code from unauthorized access. The device is packaged in a compact, surface-mountable form factor, making it suitable for space-constrained applications.

Overall, the DS2250-32-16 from Maxim Integrated is a powerful and versatile microcontroller module that offers a unique combination of processing power, nonvolatile memory, and integrated peripherals, making it a top choice for developers looking to enhance the performance and reliability of their embedded systems.
