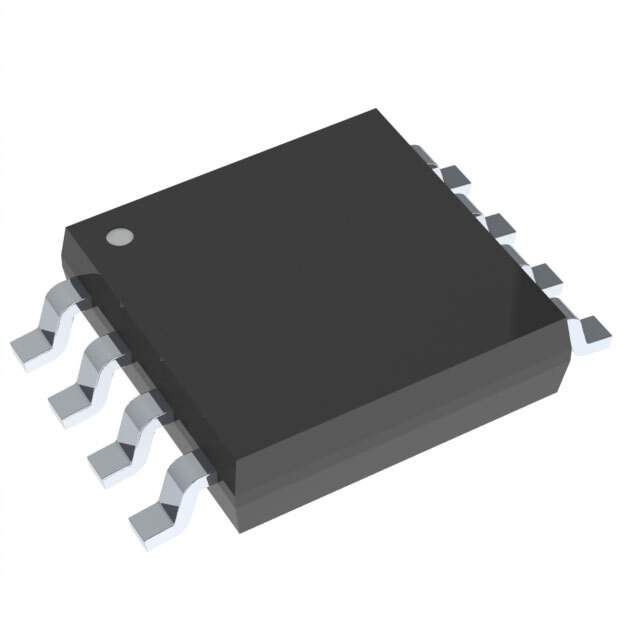

Maxim Integrated DS1869S-10 Digital Potentiometer

The DS1869S-10 from Maxim Integrated is a versatile digital potentiometer that offers a reliable and precise solution for adjusting resistance electronically. Designed to mimic the analog functionality of a mechanical potentiometer, this digital counterpart provides an array of features that make it ideal for a variety of applications in modern electronic devices.

This particular model, the DS1869S-10, operates with a resistance value of 10kΩ, which is a common specification for volume control in audio applications, as well as for tuning and calibration in communication devices. The potentiometer comes in a compact surface-mount package, making it suitable for space-constrained applications.

One of the key features of the DS1869S-10 is its non-volatile memory (EEPROM), which allows the device to retain the last programmed resistance value even after power is removed. This ensures consistent performance between power cycles, eliminating the need for recalibration at every startup.

The digital potentiometer is controlled via a simple two-wire serial interface, which makes it easy to integrate into a microcontroller-based system. With this interface, users can increment or decrement the resistance value or set it to a specific value with precise digital commands. The DS1869S-10's digital nature allows for resistance adjustments that are free from the mechanical wear and tear associated with traditional potentiometers, resulting in a longer lifespan and increased reliability.

The device operates over a wide voltage range, typically from 3V to 5V, which accommodates a broad spectrum of applications. Additionally, it can handle a maximum current of 1 mA, making it suitable for low-power operations.

Whether it's for adjusting volume, setting operational parameters, or calibrating sensor inputs, the DS1869S-10 is an excellent choice for designers looking for a digital solution to replace mechanical potentiometers. Its robustness, precision, and digital control capabilities make it a valuable component in the design of consumer electronics, professional audio equipment, and industrial control systems.
