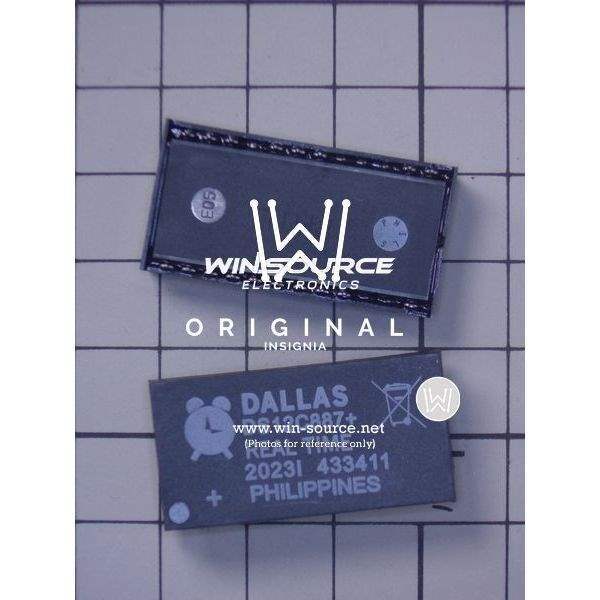

The Maxim Integrated DS12C887+ is a versatile, full-featured real-time clock (RTC) module that is designed to provide a comprehensive timekeeping solution for a wide range of applications. This RTC integrates a quartz crystal and a lithium battery, making it a highly reliable and self-contained timekeeping component.

The DS12C887+ offers a multitude of features that make it an excellent choice for systems requiring accurate time and date information. It is equipped with 114 bytes of NV SRAM, which ensures data preservation in the absence of power. The device supports a binary or BCD time representation and includes registers for seconds, minutes, hours, day, date, month, and year with leap-year compensation valid up to the year 2100.

A key feature of the DS12C887+ is its built-in battery, which allows the RTC to maintain timekeeping operations for over ten years in the absence of external power. This makes it ideal for use in embedded systems, industrial controllers, and other applications where maintaining accurate time is critical and power interruptions are possible.

The device also includes an interrupt output that can be programmed with a variety of functions, such as periodic interrupts or alarm interrupts, which are useful for task scheduling or alerting the system to specific events. The DS12C887+ communicates with a host processor via a simple multiplexed interface that can be easily interfaced with most microcontrollers.

With its wide operating temperature range and low power consumption, the Maxim Integrated DS12C887+ is a robust and dependable choice for ensuring precise timekeeping in your electronic designs. Its industry-standard footprint and pinout make it a drop-in replacement for other common RTC solutions, simplifying the upgrade process and ensuring compatibility with existing designs.

Whether you are designing consumer electronics, data loggers, or high-reliability industrial systems, the DS12C887+ offers the features, reliability, and ease of use necessary to meet your timekeeping requirements.
