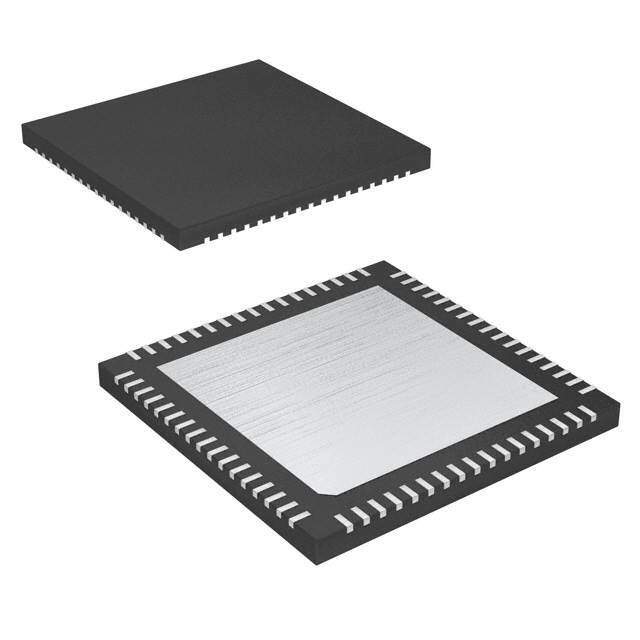

The 78M6612-IMR/F is a highly integrated, single-phase, power-measurement and monitoring SoC (System-on-Chip) from Maxim Integrated. This advanced IC is specifically designed for real-time energy monitoring and control applications within residential, commercial, and industrial environments. The 78M6612-IMR/F offers exceptional accuracy and performance for applications such as smart plugs, advanced power strips, and various other energy-saving devices.

Key Features

• High Accuracy: Equipped with a 0.1% WHr accuracy over a 2000:1 dynamic range, the 78M6612-IMR/F ensures precise energy measurement, which is vital for effective energy management and billing purposes.
• Integrated SoC: This product integrates a 32-bit compute engine, an MPU core, real-time clock, flash memory, and a 22-bit delta-sigma ADC, streamlining design and reducing the bill of materials.
• Embedded Firmware: Preloaded Teridian™ Application Firmware supports various metering applications, easing the development process and accelerating time-to-market.
• Flexible Communication: The inclusion of a UART and SPI interface facilitates easy communication with external processors or networks, enabling integration into a wide array of systems.
• Low Power: Designed for energy-sensitive applications, the 78M6612-IMR/F operates with low power consumption, making it an environmentally friendly choice.

Applications

The versatility of the 78M6612-IMR/F allows it to be used in a wide range of applications, including:

• Smart power strips and outlets
• Residential energy monitors
• Appliance energy monitoring and control
• Industrial and commercial sub-metering
• Energy conservation and management systems

Technical Specifications

For designers and engineers considering the 78M6612-IMR/F for their projects, some of the technical specifications include:

• Supply Voltage: 3.0V to 3.6V
• Operating Temperature: -40°C to +85°C
• Package Type: 24-pin QFN

With its comprehensive feature set and robust design, the 78M6612-IMR/F from Maxim Integrated is an excellent choice for any application requiring precise power measurement and efficient energy management.
