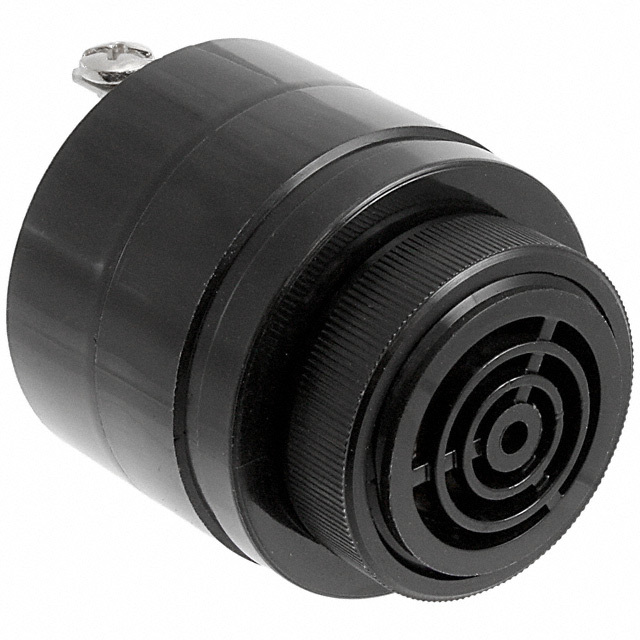

SCH628PR Mallory Sonalert Products Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SCH628PR

Part No SCH628PR
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER PIEZO 42.85MM PNL MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Range 6 ~ 28V
Frequency 2.9kHz
Technology Piezo
Operating Mode Pulse, Fast
Duration 2 ~ 10 PPS
Sound Pressure Level (SPL) 78dB @ 6V, 61cm
Current - Supply 6 ~ 26mA
Port Location Top
Temperature Range - Operating -30°C ~ 65°C
Approval Agency CSA, cUL, UL
Ingress Protection IP66, NEMA 3R, 4X, 12
Mounting Type Panel Mount
Termination Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension 1.687" Dia (42.85mm)
Height - Seated (Max) 1.330\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1546835-SCH628PR
Ultra Librarian 3D Model Ultra Librarian SCH628PR CAD Model
