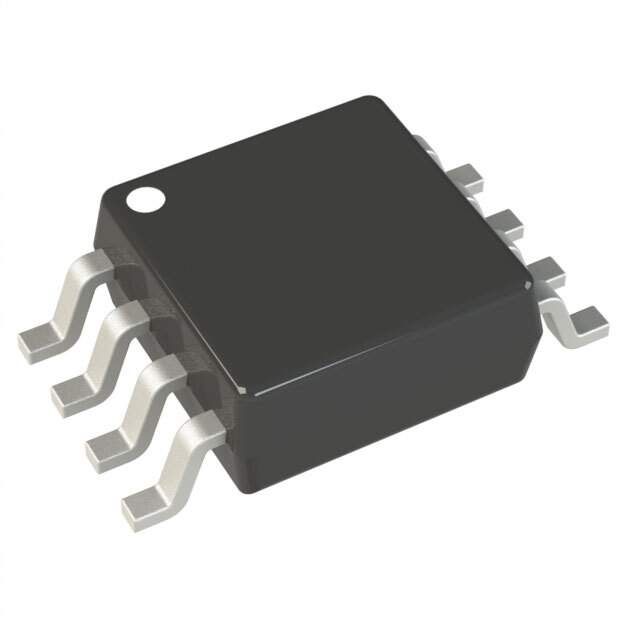

MX77L12850FM2I40 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory>Memory
Mfr Macronix
Series MXSMIO™
Package Tube
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR (SLC)
Memory Size 128Mbit
Memory Organization 32M x 4, 64M x 2, 128M x 1
Memory Interface SPI - Quad I/O
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 50µs, 1.2ms
Access Time 6 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.209", 5.30mm Width)
Supplier Device Package 8-SOP
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Standard Package 92 pcs
Win Source Part Number 1382998-MX77L12850FM2I40
Ultra Librarian 3D Model Ultra Librarian MX77L12850FM2I40 CAD Model

Description

The Macronix 1200134 is a 128Mbit flash memory with a clock frequency of 104MHz.

  • Voltage Range: 2.7V to 3.6V
  • Write Cycle Time (Word): 50µs
  • Write Cycle Time (Page): 1.2ms
  • Memory Organization: 32M x 4, 64M x 2, or 128M x 1
  • Interface: SPI quad I/O
  • Package: 8-SOIC
  • Mounting Type: Surface Mount
