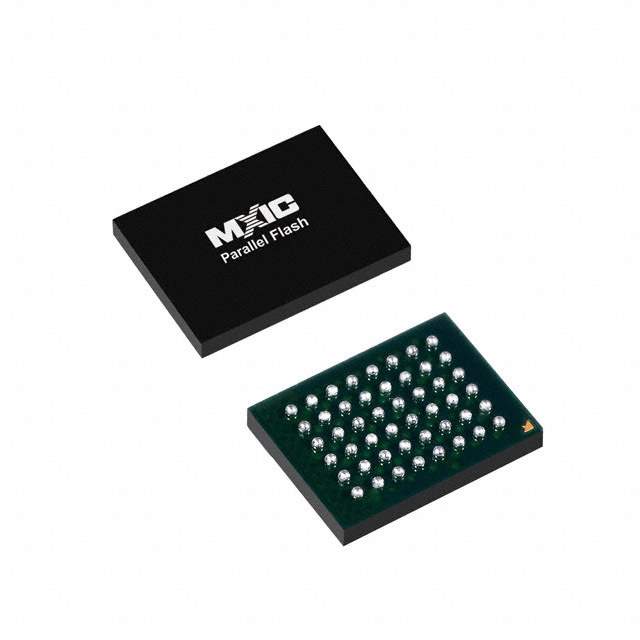

MX29LV800CBXEI-90G Real Image
Same model may have multiple batches, images only for reference.

MX29LV800CBXEI-90G

Part No MX29LV800CBXEI-90G
Manufacturer Macronix
Catalog Flash
Description IC FLASH 8MBIT PARALLEL 48LFBGA
Datasheet
MX29LV800CBXEI-90G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features FLASH - NOR Memory IC 8Mb (1M x 8) Parallel 90 ns 48-LFBGA, CSP (6x8)
Manufacturer Macronix
Series MX29LV
Package Tray
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 48-LFBGA, CSPBGA
Case / Package 48-LFBGA, CSP (6x8)
Family Name MX29LV800
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Quantity per package 480
Popularity High
Supply and Demand Status Balance
Win Source Part Number 928590-MX29LV800CBXEI-90G
Ultra Librarian 3D Model Ultra Librarian MX29LV800CBXEI-90G CAD Model

Description

The Macronix MX29LV800CBXEI-90G is a high-performance NOR flash memory IC with a storage capacity of 8Mb (1M x 8).

  • Operating Mode: parallel configuration with a 90 ns access time
  • Package: 48-LFBGA, CSP (6x8)
  • Mounting Type: surface mountable
  • Operating Temperature: -40°C to 85°C (TA)
  • Series: MX29LV
  • Part Status: not recommended for new designs
