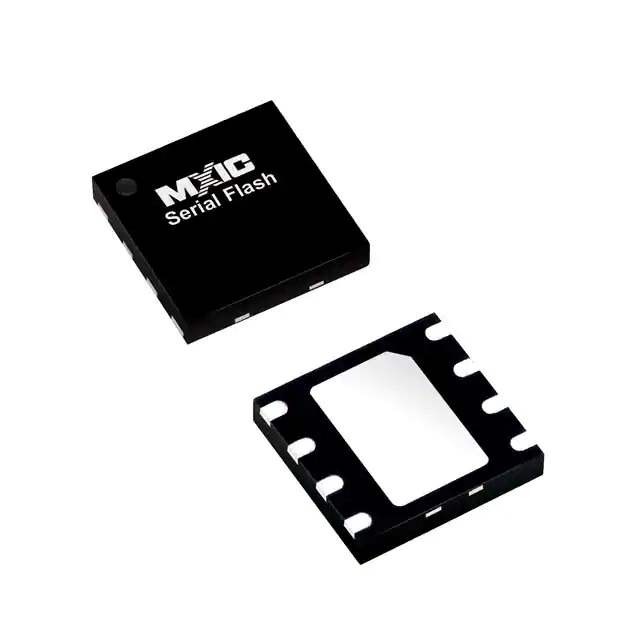

MX25U1635FZUI-10G Real Image
Same model may have multiple batches, images only for reference.

MX25U1635FZUI-10G

Part No MX25U1635FZUI-10G
Manufacturer Macronix
Catalog Memory
Description IC FLASH 16MBIT SPI/QUAD 8USON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series MX25xxx35/36 - MXSMIO™
Package Tray
Product Status Not For New Designs
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mbit
Memory Organization 2M x 8
Memory Interface SPI - Quad I/O
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 30µs, 1.5ms
Voltage - Supply 1.65V ~ 2V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-USON (4x4)
Base Product Number MX25U1635
Standard Package 490 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1B1
HTSUS 8542.32.0071
Win Source Part Number 845547-MX25U1635FZUI-10G
Ultra Librarian 3D Model Ultra Librarian MX25U1635FZUI-10G CAD Model

Description

The MX25U1635FZUI-10G is a 16Mbit FLASH - NOR memory IC from Macronix. It belongs to the MX25xxx35/36 - MXSMIO™ series and is designed for non-volatile memory applications.

  • Memory: 16Mbit
  • Programmable: No
  • Voltage Supply: 1.65V to 2V
  • Clock Frequency: 104 MHz
  • Package: 8-WDFN Exposed Pad
  • Mounting: surface mounted
  • Temperature Range: -40°C to 85°C (TA)
  • Memory Interface: SPI - Quad I/O
  • Memory Organization: 2M x 8
  • Manufacturer: Macronix
