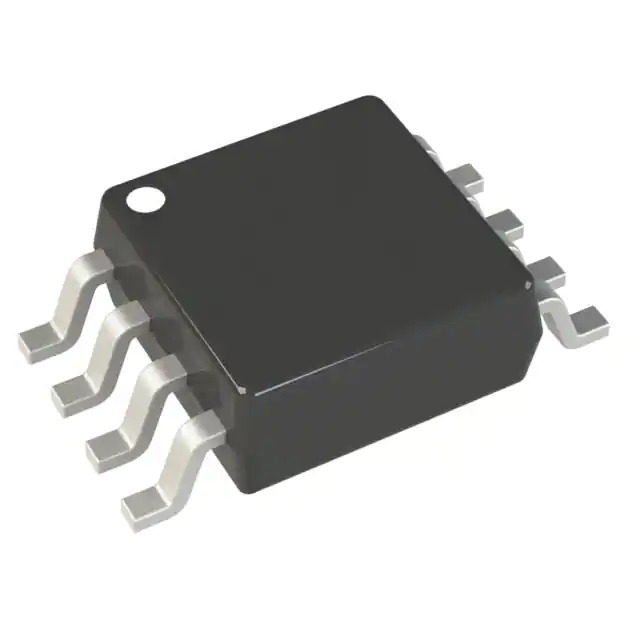

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series MXSMIO™
Package Tube
Product Status Active
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 32Mbit
Memory Organization 4M x 8
Memory Interface SPI - Quad I/O
Clock Frequency 80 MHz
Write Cycle Time - Word, Page 100µs, 10ms
Voltage - Supply 1.65V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.209", 5.30mm Width)
Supplier Device Package 8-SOP
Base Product Number MX25R3235
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1371527-MX25R3235FM2IL0
Ultra Librarian 3D Model Ultra Librarian MX25R3235FM2IL0 CAD Model

Description

The MX25R3235FM2IL0 is a 32Mbit Flash NOR memory integrated circuit from Macronix.

  • Temperature Range: -40°C ~ 85°C
  • Voltage Supply: 1.65V ~ 3.6V
  • Memory Organization: 4M x 8
  • Memory Interface: SPI - Quad I/O
  • Clock Frequency: 80MHz
  • Write Cycle Time (Word): 100μs
  • Write Cycle Time (Page): 10ms
  • Package: 8-SOIC (0.209", 5.30mm Width)
  • Product Status: Active
