Same model may have multiple batches, images only for reference.

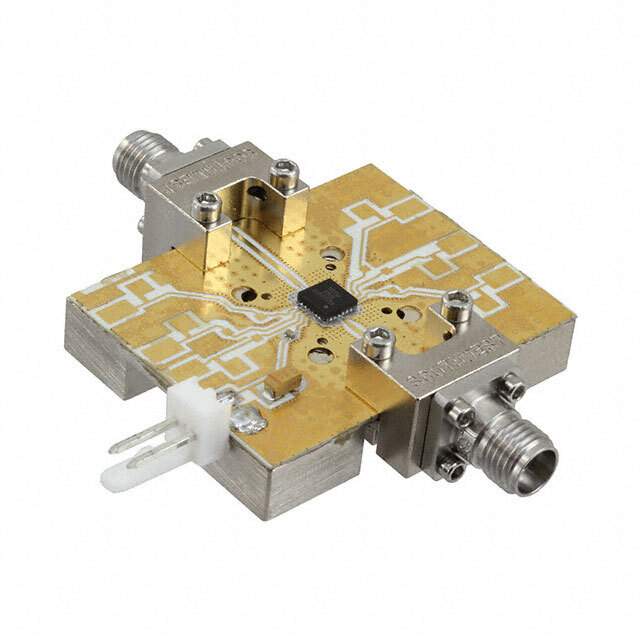

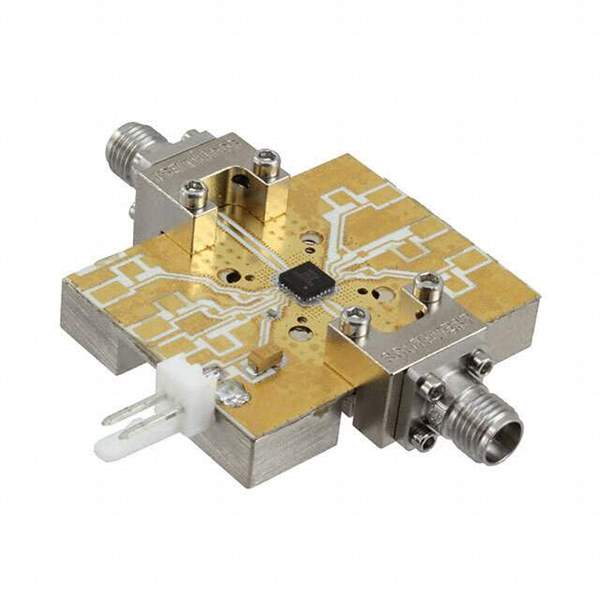

XX1002-QH-0G0T Real Image
Same model may have multiple batches, images only for reference.

XX1002-QH-0G0T

Part No XX1002-QH-0G0T
Manufacturer M/A-Com Technology Solutions
Catalog RF Misc ICs and Modules
Description 2.5-6.0/5.0-12.0 GHz Active Doubler QFN, 4x4 mm | IC FREQ DOUBLER 2.5-6GHZ 24QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Cut Tape (CT)
Function Doubler
Frequency 2.5GHz ~ 6GHz, 5GHz ~ 12GHz
RF Type General Purpose
Manufacturer Package 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1282441-XX1002-QH-0G0T
Manufacturer Homepage www.mimixbroadband.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XX1002-QH-0G0T CAD Model

Description

The 1282441-XX1002-QH-0G0T is a general-purpose RF doubler designed for use in a wide range of applications from M/A-Com Technology Solutions.

  • Frequency Range: 2.5GHz to 6GHz and 5GHz to 12GHz
  • Win Source Part Number: 1282441
  • Package: 24-QFN (4x4)
  • Packaging: cut tape
  • RoHS Compliant: Yes
  • Manufacturer Pack Quantity: 1
