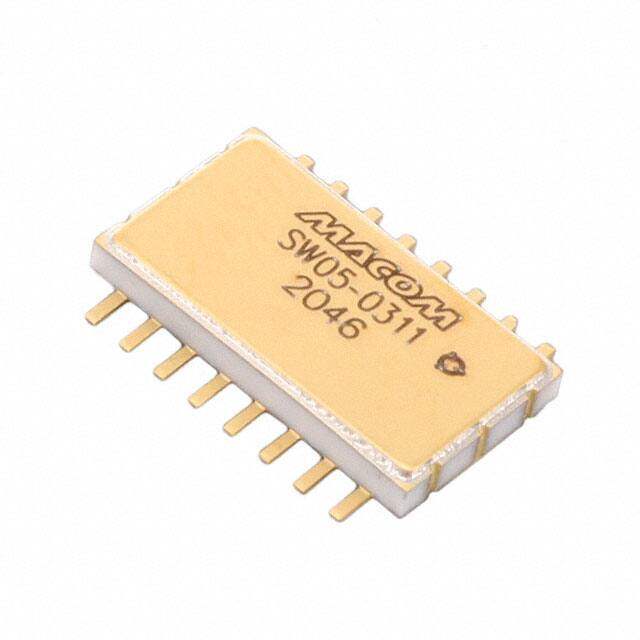

SW05-0311 Real Image
Same model may have multiple batches, images only for reference.

SW05-0311

Part No SW05-0311
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description IC RF SWITCH SPST 3GHZ CR-9
Datasheet
SW05-0311 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr M/A-Com Technology Solutions
Package Tray
Product Status Active
RF Type General Purpose
Circuit SPST
Frequency Range 0Hz ~ 3GHz
Isolation 29dB
Insertion Loss 1dB
Test Frequency 3GHz
IIP3 46dBm
Impedance 50Ohm
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case CR-9
Supplier Device Package CR-9
Base Product Number SW05
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 898581-SW05-0311
Ultra Librarian 3D Model Ultra Librarian SW05-0311 CAD Model

Description

The RF Switch with Win Source Part Number 898581-SW05-0311 is a high-quality electronic component designed for RF and wireless applications.

  • Test Frequency: 3GHz
  • Frequency Range: 0Hz to 3GHz
  • Impedance: 50Ohm
  • Insertion Loss: 1dB
  • Circuit Configuration: SPST
  • Isolation: 29dB
  • Package: surface mount
  • Temperature Range: -40°C to 125°C
  • Manufacturer: M/A-Com Technology Solutions
