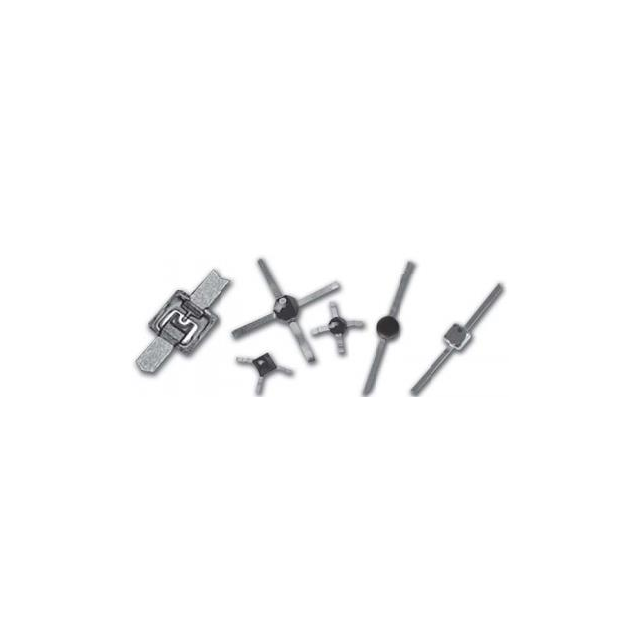

MSS30-346-B21 Real Image1 MSS30-346-B21 Real Image2
Same model may have multiple batches, images only for reference.
MSS30-346-B21 Real Image1 MSS30-346-B21 Real Image2
MSS30-346-B21 Real Image1 MSS30-346-B21 Real Image2
Same model may have multiple batches, images only for reference.

MSS30-346-B21

Part No MSS30-346-B21
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description COM SCHOTTKY-BEAMLEAD- B21 / RF Diode Schottky - Anti-Parallel 50 mA 100 mW B21
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>RF Diodes
Mfr M/A-Com Technology Solutions
Series -
Package Tray
Diode Type Schottky - Anti-Parallel
Voltage - Peak Reverse (Max) -
Current - Max 50 mA
Capacitance @ Vr, F 0.3pF @ 0V, 1MHz
Resistance @ If, F 11Ohm @ 5mA, 1MHz
Power Dissipation (Max) 100 mW
Temperature Range - Operating -65°C ~ 150°C
Package / Case B21
Supplier Device Package B21
Base Product Number MSS30
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Standard Package 25 pcs
Win Source Part Number 1382970-MSS30-346-B21
Ultra Librarian 3D Model Ultra Librarian MSS30-346-B21 CAD Model

Description

The MSS30-346-B21 is a Schottky anti-parallel diode designed for use in RF applications.

  • Maximum Current Rating: 50 mA
  • Power Dissipation: 100 mW
  • Capacitance: 0.3pF @ 0V and 1MHz
  • Voltage Peak Reverse: Not specified
  • Resistance: 11 Ohm @ 5mA and 1MHz
  • Temperature Range: -65°C to 150°C
  • Package: B21
  • Manufacturer: M/A-Com Technology Solutions
