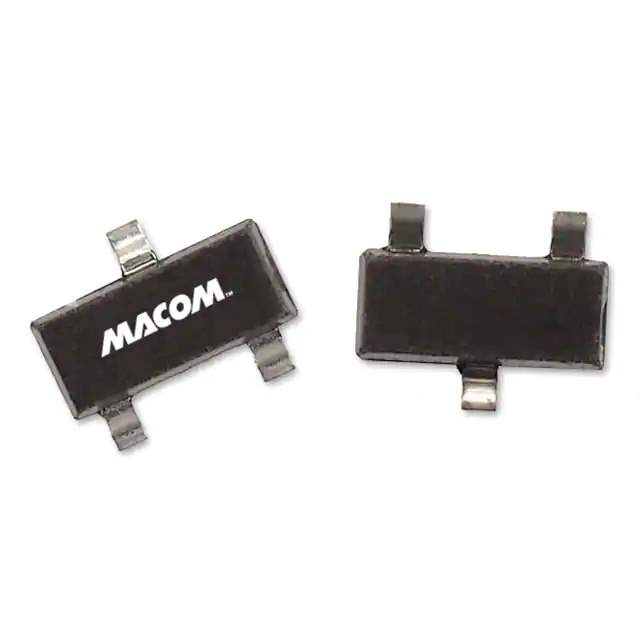

Same model may have multiple batches, images only for reference.

MAVR-045446-0287AT

Name: MAVR-045446-0287AT
Brand: M/A-Com Technology Solutions
SKU: 747220
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAVR-045446-0287AT
Manufacturer	M/A-Com Technology Solutions
Catalog	Variable Capacitance Diodes (Varicaps, Varactors)
Description	DIODE,VARACTOR,ABRUPT, SINGLE,PL
Datasheet	MAVR-045446-0287AT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Variable Capacitance (Varicaps, Varactors)
Mfr	M/A-Com Technology Solutions
Package	Tape & Reel
Product Status	Active
Capacitance @ Vr, F	36.3pF @ 4V, 1MHz
Capacitance Ratio	4.7
Capacitance Ratio Condition	C0/C30
Voltage - Peak Reverse (Max)	30 V
Diode Type	Single
Q @ Vr, F	750 @ 4V, 1MHz
Temperature Range - Operating	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
Base Product Number	MAVR-045446
Standard Package	3,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	747220-MAVR-045446-0287AT
Ultra Librarian 3D Model	Ultra Librarian MAVR-045446-0287AT CAD Model

Description

The MAVR-045446-0287AT is a single varactor diode designed for RF applications.

Capacitance: 36.3pF @ 4V and 1MHz
Peak Reverse Voltage: 30V
Capacitance Ratio: 4.7
Package: Tape & Reel
Standard Package: 3,000 pcs
Series: MAVR-045446
Manufacturer: M/A-Com Technology Solutions
Status: Active
ECCN: EAR99
HTSUS Code: 8541.10.0080
