Same model may have multiple batches, images only for reference.

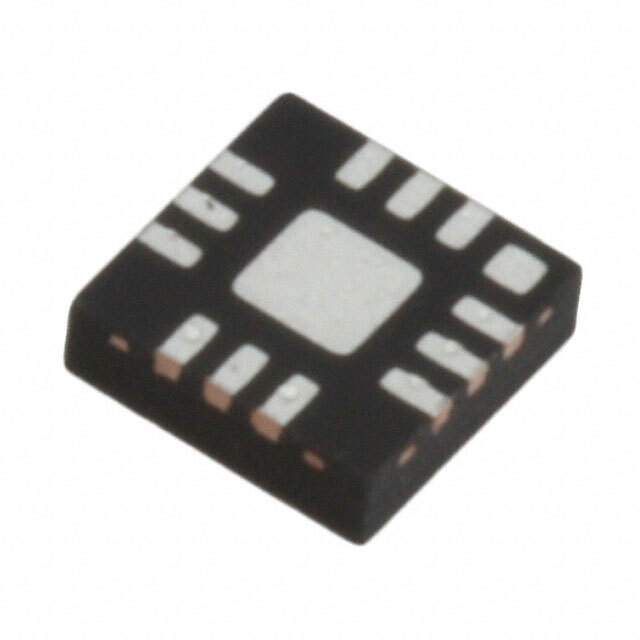

MASWSS0202TR-3000 Real Image
Same model may have multiple batches, images only for reference.

MASWSS0202TR-3000

Part No MASWSS0202TR-3000
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description SWITCH GAAS SPDT DC-6GHZ 12PQFN
Datasheet
MASWSS0202TR-3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Part Status Active
Frequency - Lower DC
Frequency - Upper 6GHz
Isolation @ Frequency 25dB @ 6GHz (typ)
Insertion Loss @ Frequency 0.75dB @ 6GHz
IIP3 51dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 35dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type 802.11a/b/g
Case 12-VFQFN Exposed Pad
Supplier Device Package 12-PQFN (3x3)
Win Source Part Number MASWSS0202TR-3000-207821
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MASWSS0202TR-3000 CAD Model

Description

The MASWSS0202TR-3000-207821 is a reflective SPDT circuit manufactured by M/A-Com Technology Solutions.

  • Category: RF/IF and RFID
  • Supply and Demand Status: limited
  • Frequency Range: DC to 6GHz
  • Isolation: 25dB @ 6GHz (typ)
  • Insertion Loss: 0.75dB @ 6GHz
  • P1dB: 35dBm
  • IIP3: 51dBm (typ)
