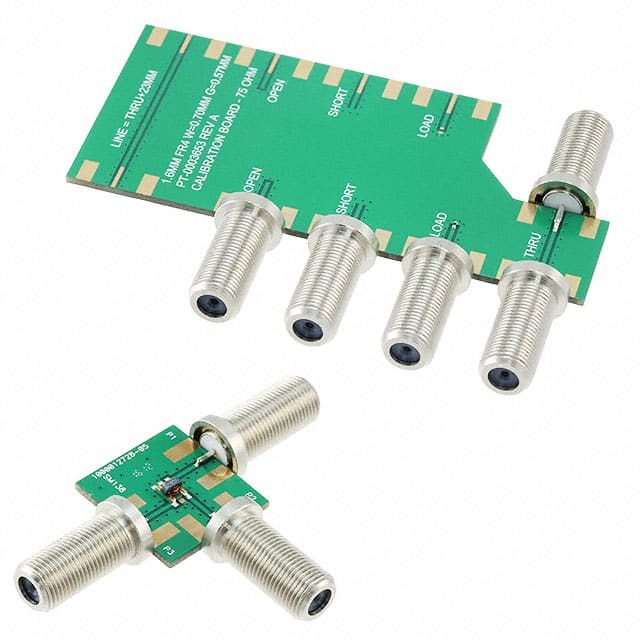

Same model may have multiple batches, images only for reference.
MAPD-009492-C2W1TB
Same model may have multiple batches, images only for reference.

MAPD-009492-C2W1TB

Part No MAPD-009492-C2W1TB
Manufacturer M/A-Com Technology Solutions
Catalog RF Evaluation and Development Kits, Boards
Description EVAL BOARD FOR MAPD-009492-C2W18
Datasheet
MAPD-009492-C2W1TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - RF Evaluation and Development Kits, Boards
Mfr M/A-Com Technology Solutions
Package Box
Product Status Active
Type Splitter
Frequency 5MHz ~ 1.2GHz
For Use With/Related Products MAPD-009492-C2W180
Supplied Contents Board(s)
Base Product Number MAPD-009492
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 925149-MAPD-009492-C2W1TB
Ultra Librarian 3D Model Ultra Librarian MAPD-009492-C2W1TB CAD Model

Description

The RF Evaluation and Development Kit with Win Source Part Number 925149-MAPD-009492-C2W1TB is a versatile product designed for development and testing of RF systems.

  • Type: Splitter type kit
  • Used with: MAPD-009492-C2W180 product
  • Package: Box package
  • Includes: Board(s) for evaluation and development
  • Frequency Range: 5MHz to 1.2GHz
  • Manufacturer: M/A-Com Technology Solutions
  • Status: Currently active
