Same model may have multiple batches, images only for reference.

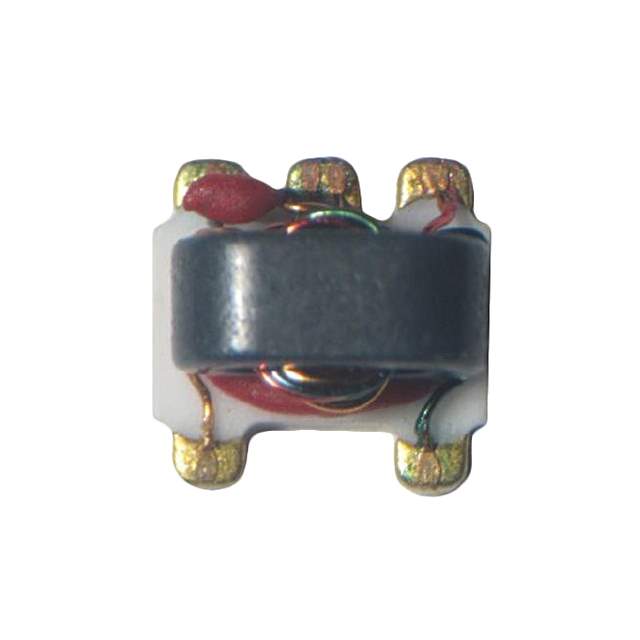

MABA-009180-500MHZ Real Image
Same model may have multiple batches, images only for reference.

MABA-009180-500MHZ

Part No MABA-009180-500MHZ
Manufacturer M/A-Com Technology Solutions
Catalog Balun
Description E-Series RF 1:1 Transformer 0.4-500 MHz | BALUN 1MHZ-500MHZ 1:1 6SMD FLAT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Frequency Range 1MHz ~ 500MHz
Phase Difference 5°
Insertion Loss (Maximum) 3.0dB
Manufacturer Package 6-SMD (5 Leads), Flat Lead
Mounting Style SMT
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1211594-MABA-009180-500MHZ
Manufacturer Homepage www.macomtech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MABA-009180-500MHZ CAD Model

Description

The MABA-009180-500MHZ is a surface-mount balun from M/A-Com Technology Solutions.

  • Frequency Range: 1MHz to 500MHz
  • Phase Difference: 5 degrees
  • Insertion Loss: Maximum 3.0dB
