Same model may have multiple batches, images only for reference.

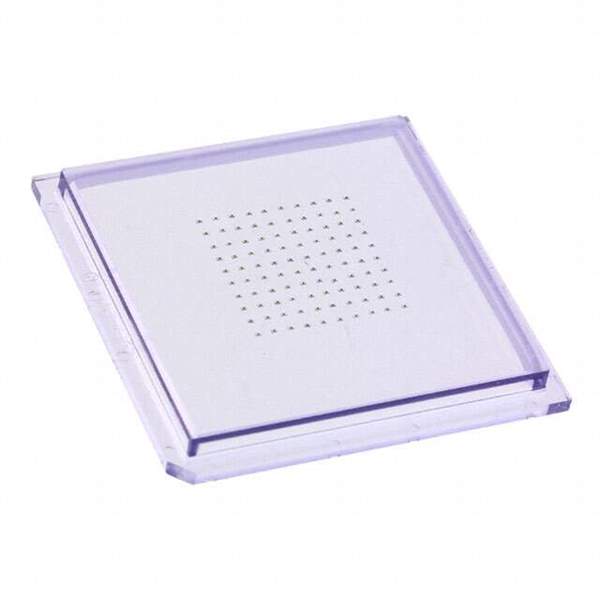

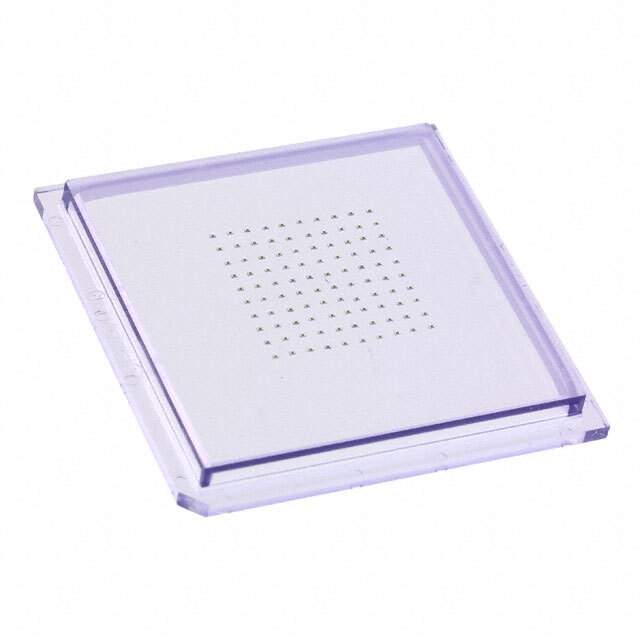

MA46H120 Real Image
Same model may have multiple batches, images only for reference.

MA46H120

Part No MA46H120
Manufacturer M/A-Com Technology Solutions
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description VARACTORDIODE FLIPCHIP GAAS  /  Varactors Single 20 V Surface Mount
Datasheet
MA46H120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Variable Capacitance (Varicaps, Varactors)
Mfr MACOM Technology Solutions
Package Bulk
Capacitance @ Vr, F 0.2pF @ 10V, 1MHz
Voltage - Peak Reverse (Max) 20 V
Diode Type Single
Q @ Vr, F 3000 @ 4V, 50MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 2-SMD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.59.0080
Other Names 1465-1011
Standard Package 100
Win Source Part Number 1127688-MA46H120
Ultra Librarian 3D Model Ultra Librarian MA46H120 CAD Model

Description

The MACOM Technology Solutions MA46H120 is a high-performance diode used in variable capacitance applications.

  • Application: Variable Capacitance
  • Capacitance: 0.2pF @ 10V and 1MHz
  • Voltage Peak Reverse: 20V
  • Q: 3000 @ 4V and 50MHz
  • Packaging: Bulk
  • Standard Package: 100
  • Mounting: SMD (SMT)
  • Manufacturer: MACOM Technology Solutions
  • Win Source Part Number: 1127688-MA46H120
  • ECCN: EAR99
  • HTSUS: 8541.59.0080
