Same model may have multiple batches, images only for reference.

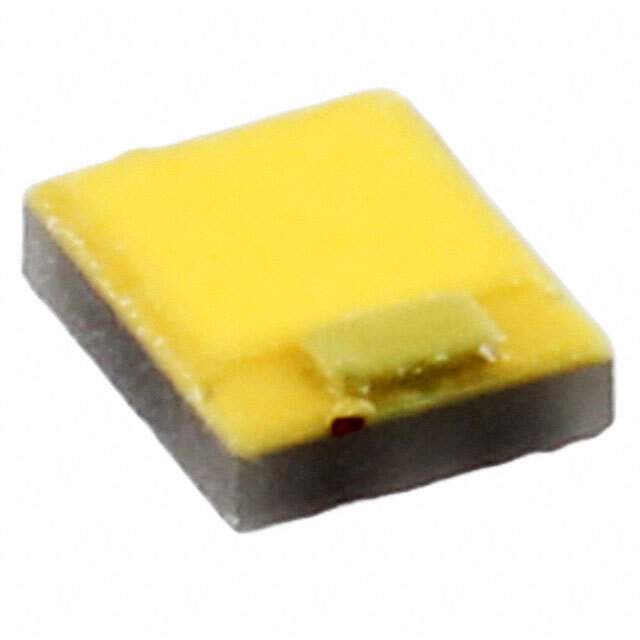

LXZ2-2790-3 Real Image
Same model may have multiple batches, images only for reference.

LXZ2-2790-3

Part No LXZ2-2790-3
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 2700K 2SMD / LED Lighting series White, Warm 2700K 3-Step MacAdam Ellipse 2.8V 700mA 120° 0806 (2016 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON Z ES
Package Tape & Reel
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 160lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 82 lm/W
CRI (Color Rendering Index) 90
Current - Max 1.2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package SMD
Dimension 0.080" L x 0.065" W (2.04mm x 1.64mm)
Height - Seated (Max) 0.031" (0.78mm)
Thermal Resistance of Package 3°C/W
Base Product Number LXZ2-2790
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1706-6,1416-1706-1,1416-1706-2,LXZ2-2790-3-ND
Standard Package 2,000
Win Source Part Number 1073270-LXZ2-2790-3
Ultra Librarian 3D Model Ultra Librarian LXZ2-2790-3 CAD Model

Description

The LUXEON Z ES Warm White LED is a high-performance component for optoelectronics and LED lighting applications.

  • Viewing Angle: 120 degrees
  • Forward Voltage: 2.8V
  • Maximum Current: 1.2A
  • Color Rendering Index (CRI): 90
  • Thermal Resistance of Package: 3 degrees Celsius per watt
  • Package: 0806 (2016 Metric) SMD
  • Packaging: Tape and Reel
  • Standard Package: 2,000 units
  • Manufacturer: Lumileds
