Same model may have multiple batches, images only for reference.

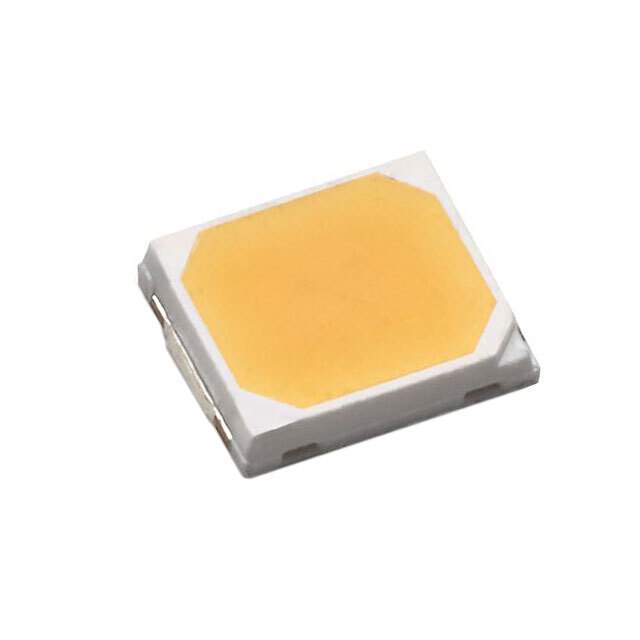

L128-4080CB3500001 Real Image
Same model may have multiple batches, images only for reference.

L128-4080CB3500001

Part No L128-4080CB3500001
Manufacturer Lumileds
Catalog LED Lighting - White
Description LUXEON 2835C 6V 4000K 80CRI / LED Lighting series White, Neutral 4000K 6V 120mA 120° 1411 (3528 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON 2835
Package Tape & Reel
Color White, Neutral
CCT (K) 4000K
Flux @ 25°C, Current - Test 113lm (Typ)
Current - Test 120mA
Voltage - Forward (Vf) (Typ) 6V
Lumens/Watt @ Current - Test 157 lm/W
CRI (Color Rendering Index) 80
Current - Max 240mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1411 (3528 Metric)
Supplier Device Package 2835
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.030" (0.75mm)
Thermal Resistance of Package 11°C/W
Base Product Number L128-4080
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1926-6,1416-1926-2,1416-1926-1
Standard Package 4,000
Win Source Part Number 960973-L128-4080CB3500001
Ultra Librarian 3D Model Ultra Librarian L128-4080CB3500001 CAD Model

Description

The L128-4080CB3500001 is a white, neutral-colored LED light designed by Lumileds. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Color: White, Neutral
  • Series: LUXEON 2835
  • Viewing Angle: 120 degrees
  • Forward Voltage: 6V
  • Maximum Current: 240mA
  • Thermal Resistance: 11 degrees Celsius per watt
  • Standard Package: 4,000
  • Mounting: SMD (SMT)
  • Seated Height: 0.030 inches (0.75mm)
  • CCT: 4000K
  • CRI: 80
  • Flux: 113lm (Typ) @ 25 degrees Celsius
  • Current Test: 120mA
  • Lumens/Watt: 157 lm/W
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
