Same model may have multiple batches, images only for reference.

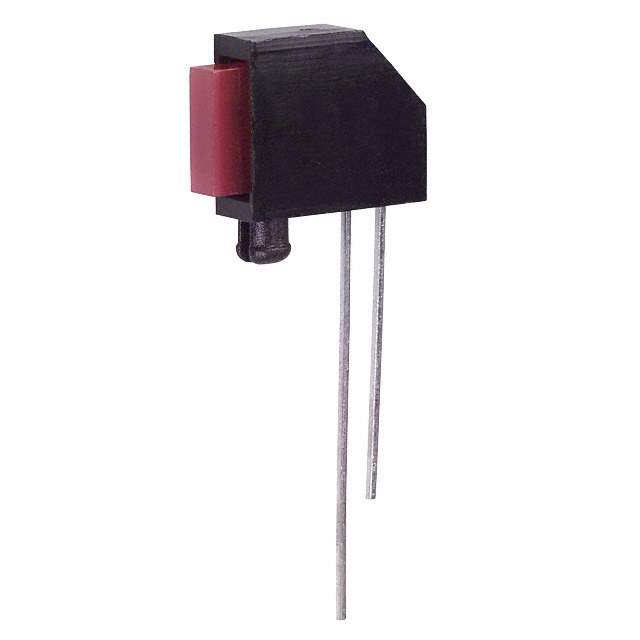

SSF-LXH25780SRD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH25780SRD

Part No SSF-LXH25780SRD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2.5X7MM RA SUP RED DIFF PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Red Diffused, Tinted 1.7V 20mA Rectangle with Flat Top 7.00mm x 2.50mm Through Hole, Right Angle
Datasheet
SSF-LXH25780SRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 660nm
Configuration Bar - Single, SIP
Current 20mA
Millicandela Rating 50mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 7.00mm x 2.50mm
Voltage Rating 1.7V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH25780
Other Names 67-1272,67-1272R,LU2023B1
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238156-SSF-LXH25780SRD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH25780SRD CAD Model

Description

This LED component is a red colored bar that is single in configuration and has a SIP package.

  • Viewing Angle: 110 degrees
  • Millicandela Rating: 50mcd
  • Wavelength Peak: 660nm
  • Voltage Rating: 1.7V
  • Lens Type: Diffused and tinted
  • Lens Style: Rectangle flat top
  • Lens Size: 7.00mm x 2.50mm
  • Mounting: Through-hole or right angle
  • Manufacturer: Lumex Opto/Components Inc.
