Same model may have multiple batches, images only for reference.

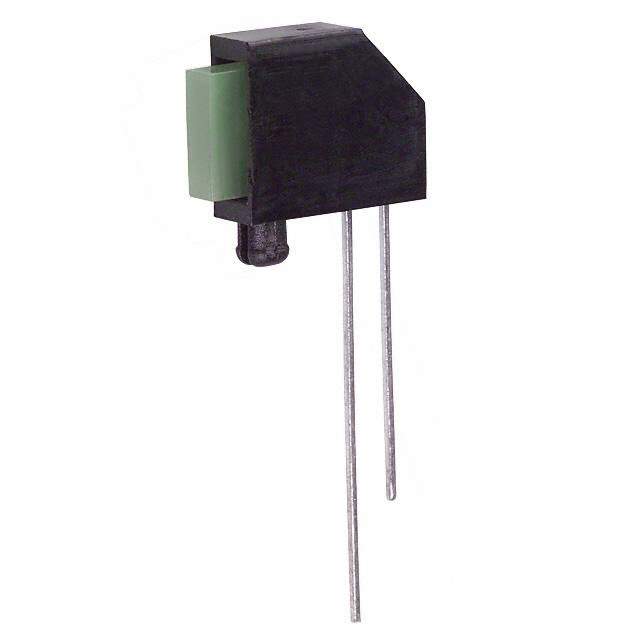

SSF-LXH25780GD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH25780GD

Part No SSF-LXH25780GD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2.5X7MM RECT RA GRN DIFFPCMT / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, Tinted 2.2V 20mA Rectangle with Flat Top 7.00mm x 2.50mm Through Hole, Right Angle
Datasheet
SSF-LXH25780GD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Bar - Single, SIP
Current 20mA
Millicandela Rating 9mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 7.00mm x 2.50mm
Voltage Rating 2.2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH25780
Other Names LU20235,67-1270R,67-1270,SSFLXH25780GD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238226-SSF-LXH25780GD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH25780GD CAD Model

Description

The Lumex Opto/Components Inc. LED is a high-quality product designed for use in circuit board indicators, arrays, light bars, and bar graphs.

  • Color: Green
  • Viewing Angle: 110°
  • Millicandela Rating: 9mcd
  • Wavelength: 565nm
  • Lens Type: Diffused, Tinted
  • Current: 20mA
  • Voltage Rating: 2.2V
  • Mounting Type: Through-Hole, Right Angle
