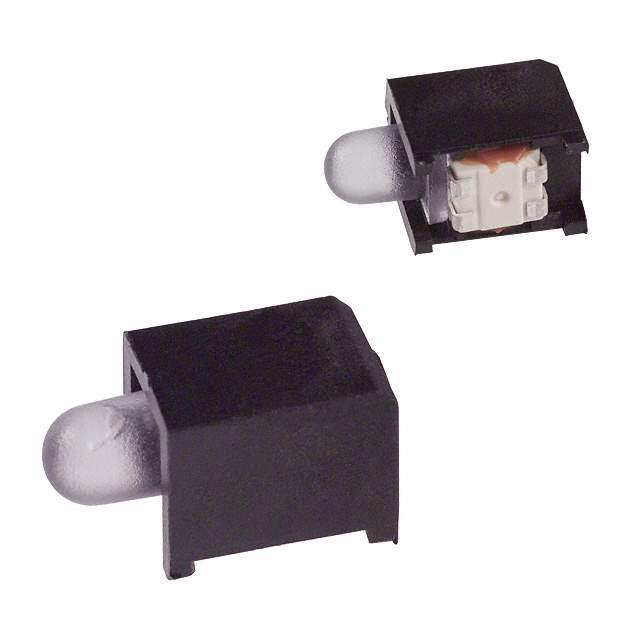

5912101013F Real Image
Same model may have multiple batches, images only for reference.

5912101013F

Part No 5912101013F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED PRISM 3MM RA ALGAAS RED SMT
Datasheet
5912101013F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Dialight
Packaging Reel - TR
Status Active
Color Red
Wavelength - Peak 660nm
Configuration Single
Current 20mA
Millicandela Rating 18mcd
Viewing Angle 40°
Lens Style/Size Round with Domed Top, 3mm (T-1)
Voltage Rating 1.8V
Mounting Surface Mount, Right Angle
Win Source Part Number 120701-5912101013F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,600
Ultra Librarian 3D Model Ultra Librarian 5912101013F CAD Model

Description

The 5912101013F offers reliability and precision in a compact format. It is perfect for environments where both space and performance are at a premium.

Features and Benefits

  • Space-efficient design
  • Remarkable reliability and precision
  • Easy integration into existing systems
  • Consistent performance

Applications

  • Network servers
  • Portable electronics
  • Instrumentation and control devices
The component's easy integration and space-saving design make it highly suitable for modern technological applications that demand high precision.
