Same model may have multiple batches, images only for reference.

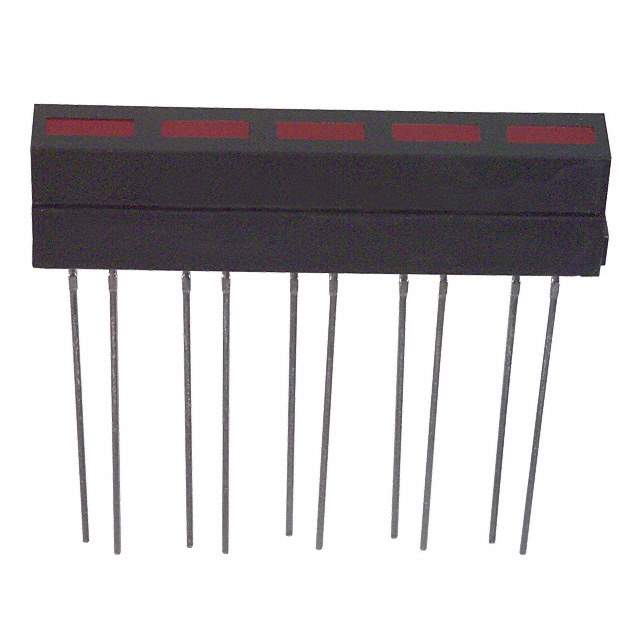

SSA-LXB525SRD Real Image
Same model may have multiple batches, images only for reference.

SSA-LXB525SRD

Part No SSA-LXB525SRD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 2X5MM 5-SEG SUPER RED / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 5 Wide, SIP Red (x 5) Diffused, Tinted 1.7V 30mA Rectangle with Flat Top 5.30mm x 1.80mm Through Hole
Datasheet
SSA-LXB525SRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 5)
Wavelength - Peak 660nm
Configuration Bar - 5 Wide, SIP
Current 30mA
Millicandela Rating 40mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.30mm x 1.80mm
Voltage Rating 1.7V
Mounting Type Through Hole
Base Product Number SSA-LXB525
Other Names SSALXB525SRD,67-1204R,67-1204,LU2001B1
Standard Package 210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238182-SSA-LXB525SRD
Ultra Librarian 3D Model Ultra Librarian SSA-LXB525SRD CAD Model

Description

The Lumex Opto/Components Inc. SSA-LXB525SRD is a red LED bar graph that is designed for use in various applications.

  • Manufacturer: Lumex Opto/Components Inc.
  • Color: Red
  • Number of LEDs: 5
  • Packaging: Bulk
  • Voltage Rating: 1.7V
  • Current: 30mA
  • Viewing Angle: 110°
  • Millicandela Rating: 40mcd
  • Wavelength Peak: 660nm
  • Lens Type: Diffused and tinted
  • Mounting Type: Through-hole
  • Lens Style: Rectangle with a flat top
