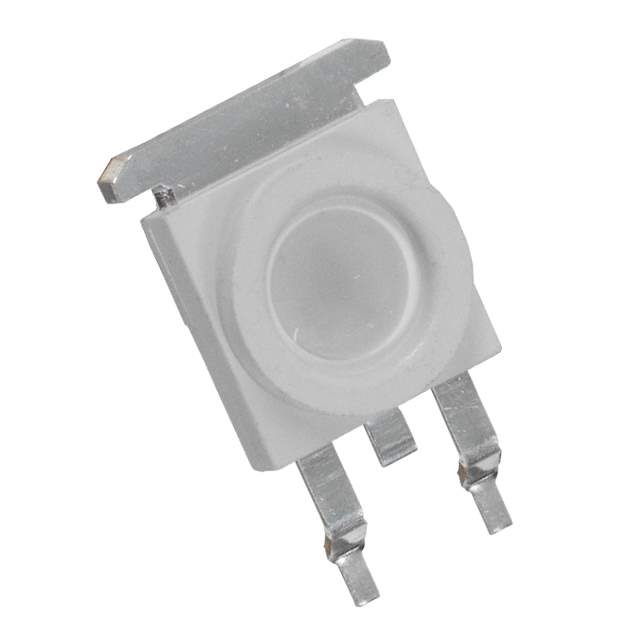

Same model may have multiple batches, images only for reference.

SML-LX1610RGBW/A

Get a Quote

Part No	SML-LX1610RGBW/A
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Lighting - Color
Description	LED TITANBRITE RGB 626/525/470 / LED Lighting Color series Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue TO-252-3, DPak (2 Leads + Tab), SC-63
Datasheet	SML-LX1610RGBW/A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Mfr	Lumex Opto/Components Inc.
Series	TitanBrite™
Package	Tube
Color	Red, Green, Blue (RGB)
Wavelength	626nm Red, 525nm Green, 470nm Blue
Current - Test	300mA Red, 350mA Green, 350mA Blue
Voltage - Forward (Vf) (Typ)	2.1V Red, 3.5V Green, 3.5V Blue
Lumens/Watt @ Current - Test	40 lm/W Red, 20 lm/W Green, 7 lm/W Blue
Current - Max	300mA Red, 350mA Green, 350mA Blue
Luminous Flux @ Current/Temperature	25lm Red, 25lm Green, 8lm Blue
Temperature - Test	25°C
Viewing Angle	110°
Mounting	SMD (SMT)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	SMD
Dimension	0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max)	0.130" (3.30mm)
Base Product Number	SML-LX1610
Other Names	67-2074,SMLLX1610RGBWA
Standard Package	50
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1240292-SML-LX1610RGBW/A
Ultra Librarian 3D Model	Ultra Librarian SML-LX1610RGBW/A CAD Model

Alternative Products

Description

The SML-LX1610RGBW/A is a color LED lighting from Lumex Opto/Components Inc.

Colors: Red, Green, and Blue
Viewing Angle: 110 degrees
Forward Voltage (Red): 2.1V
Forward Voltage (Green): 3.5V
Forward Voltage (Blue): 3.5V
Current (Red): 300mA
Current (Green): 350mA
Current (Blue): 350mA
Luminous Flux (Red): 25lm
Luminous Flux (Green): 25lm
Luminous Flux (Blue): 8lm
RoHS Compliant: Yes
Packaging: Tube
