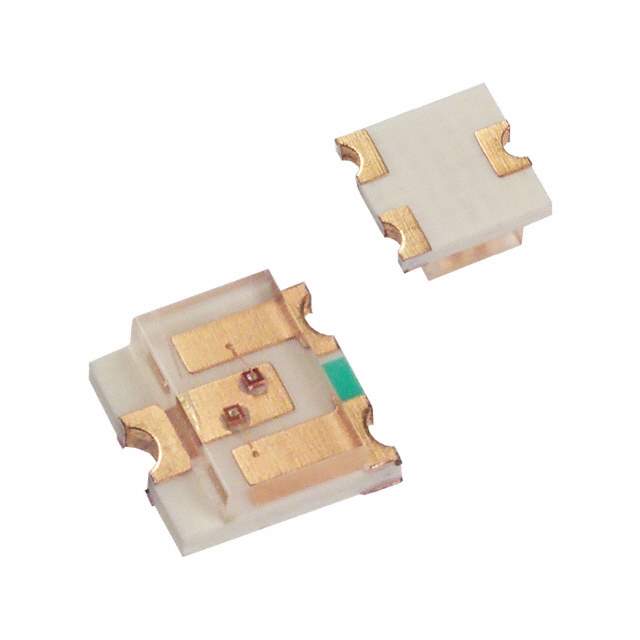

SML-LX15GIC-RP-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX15GIC-RP-TR

Part No SML-LX15GIC-RP-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR SOT23 SMD / Green, Red LED Indication - Discrete 2.2V Green, 2V Red TO-236, SC-59, SOT-23-3 variant, 3-SMD
Datasheet
SML-LX15GIC-RP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel (TR)
Color Green, Red
Configuration Common Cathode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 10mcd Green, 10mcd Red
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 3.00mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 565nm Green, 635nm Red
Package / Case TO-236, SC-59, SOT-23-3 variant, 3-SMD
Supplier Device Package SOT-23
Dimension 3.00mm L x 3.00mm W
Height (Max) 1.00mm
Base Product Number SML-LX15
Other Names SML-LX15GIC-RP-TRR
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241799-SML-LX15GIC-RP-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX15GIC-RP-TR CAD Model

Description

The SML-LX15GIC-RP-TR is an LED indication component that is designed for use in optoelectronics.

  • Configuration: common cathode
  • Viewing Angle: 140°
  • Lens Shape: rectangular
  • Lens Style: flat top
  • Lens Size: 2.00mm x 3.00mm
  • Millicandela Rating (Green): 10mcd
  • Millicandela Rating (Red): 10mcd
  • Forward Voltage (Green): 2.2V
  • Forward Voltage (Red): 2V
  • Current Test (Green): 20mA
  • Current Test (Red): 20mA
  • Peak Wavelength (Green): 565nm
  • Peak Wavelength (Red): 635nm
  • Mounting: surface-mount device
  • Case/Package: SOT-23
  • Manufacturer: Lumex Opto/Components Inc.
