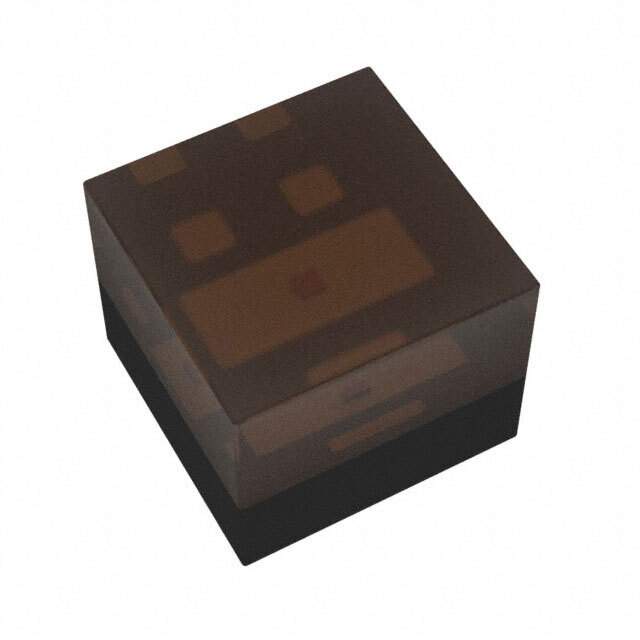

Same model may have multiple batches, images only for reference.

SML-LX0303SIUPGUSB

Name: SML-LX0303SIUPGUSB
Brand: Lumex Opto/Components Inc.
SKU: 1241821
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SML-LX0303SIUPGUSB
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Indication - Discrete
Description	LED RGB CLEAR 4SMD / Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.9V Green, 2.9V Blue 4-SMD, No Lead
Datasheet	SML-LX0303SIUPGUSB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Lumex Opto/Components Inc.
Package	Tape & Reel
Product Status	Obsolete
Color	Red, Green, Blue (RGB)
Configuration	Common Anode
Lens Color	Clear
Lens Transparency	Clear
Lens Style	Square with Flat Top
Lens Size	0.80mm
Voltage - Forward (Vf) (Typ)	2V Red, 2.9V Green, 2.9V Blue
Current - Test	3mA Red, 5mA Green, 5mA Blue
Viewing Angle	120°
Mounting	SMD (SMT)
Wavelength - Peak	625nm Red, 525nm Green, 465nm Blue
Package / Case	4-SMD, No Lead
Supplier Device Package	4-SMD
Dimension	0.80mm L x 0.80mm W
Height (Max)	0.90mm
Base Product Number	SML-LX0303
Other Names	67-2290-1,67-2290-6,67-2290-2
Standard Package	10,000
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1241821-SML-LX0303SIUPGUSB
Ultra Librarian 3D Model	Ultra Librarian SML-LX0303SIUPGUSB CAD Model

Alternative Products

Description

The Lumex Opto/Components Inc. SML-LX0303 is a LED indication discrete with a common anode configuration.

Package: Tape and reel
Standard Package: 10,000
Lens Color: Clear
Lens Transparency: Clear
Lens Style: Square flat top
Diode Type: Standard
Viewing Angle: 120°
Voltage Forward (Vf) (Typ) Red: 2V
Voltage Forward (Vf) (Typ) Green and Blue: 2.9V
Current Test Red: 3mA
Current Test Green and Blue: 5mA
Wavelength Peak Red: 625nm
Wavelength Peak Green: 525nm
Wavelength Peak Blue: 465nm
Dimension: 0.80mm L x 0.80mm W
Lens Size: 0.80mm
ROHS Compliant: Yes
ECCN: EAR99
