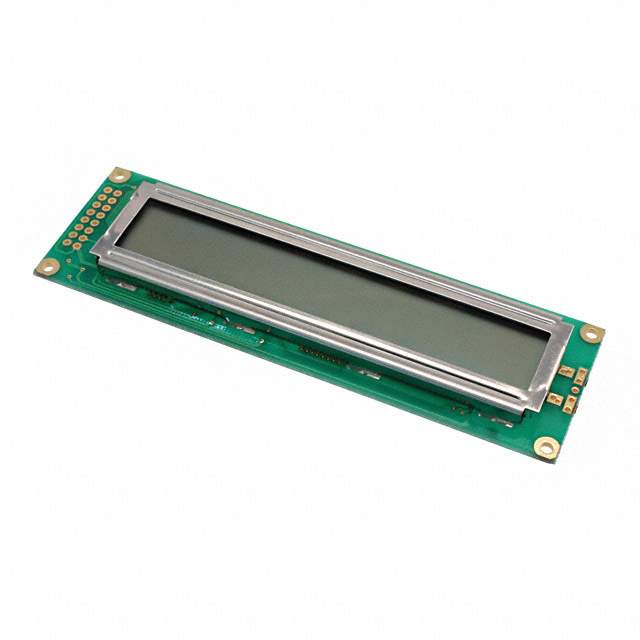

LCM-S02402DSR Real Image
Same model may have multiple batches, images only for reference.

LCM-S02402DSR

Part No LCM-S02402DSR
Manufacturer Lumex Opto/Components Inc.
Catalog Display Modules - LCD, OLED Character and Numeric
Description LCD MOD 48 DIG 24 X 2 REFLECTIVE / Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 118.00mm x 36.00mm x 8.80mm
Datasheet
LCM-S02402DSR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LCD, OLED Character and Numeric
Mfr Lumex Opto/Components Inc.
Package Bulk
Number of Characters 48
Display Format 24 x 2
Character Format 5 x 8 Dots
Display Type STN - Super-Twisted Nematic
Display Mode Reflective
Character Size 5.55mm H x 3.20mm W
Outline L x W x H 118.00mm x 36.00mm x 8.80mm
Viewing Area 93.50mm L x 16.00mm W
Backlight Without Backlight
Voltage - Supply 5V
Dot Size 0.60mm W x 0.65mm H
Interface Parallel
Temperature Range - Operating 0°C ~ 50°C
Background Color Green
Base Product Number LCM-S02402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0020
Other Names 67-1775-NDR,LCMS02402DSR,67-1775
Standard Package 30
Win Source Part Number 997822-LCM-S02402DSR
Ultra Librarian 3D Model Ultra Librarian LCM-S02402DSR CAD Model

Description

The LCM-S02402DSR is a display module for LCD, OLED character and numeric, manufactured by Lumex Opto/Components Inc.

  • Display Mode: Reflective
  • Display Format: 24 x 2
  • Character Format: 5 x 8 dots
  • Number of Characters: 48
  • Character Size: 5.55mm H x 3.20mm W
  • Interface: Parallel
  • Package: Bulk
  • Outline L x W x H: 118.00mm x 36.00mm x 8.80mm
  • Viewing Area: 93.50mm L x 16.00mm W
  • Backlight: Without backlight
  • Background Color: Green
  • Voltage-Supply: 5V
  • Temperature Range - Operating: 0°C ~ 50°C
