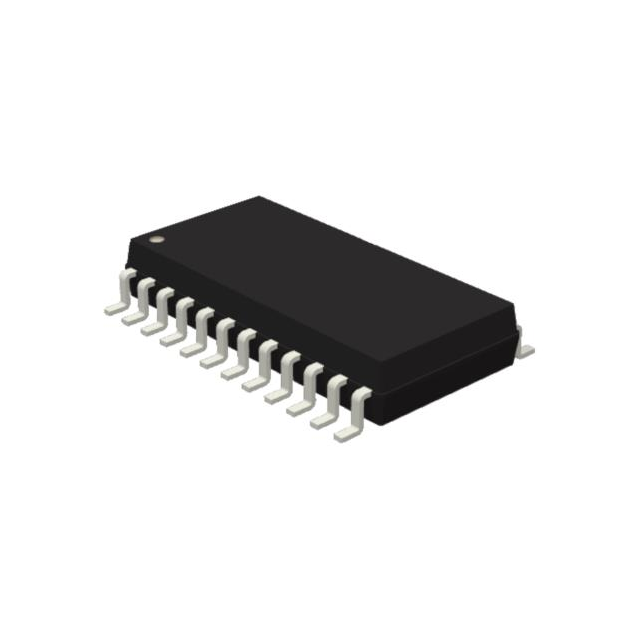

LS7290-S

Part No LS7290-S
Manufacturer LSI Computer Systems
Catalog PMIC - Motor Drivers, Controllers
Description STEPPER MOTOR CONTROLLER / Bipolar, Unipolar Motor Driver Power MOSFET PWM 24-SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>Motor Drivers, Controllers
Mfr LSI Computer Systems
Series -
Package Tube
Motor Type - Stepper Bipolar, Unipolar
Motor Type - AC, DC -
Function Controller - Commutation, Direction Management
Output Configuration Half Bridge (2)
Interface PWM
Technology Power MOSFET
Step Resolution 1, 1/2
Applications General Purpose
Current - Output -
Voltage - Supply 3V ~ 5.5V
Voltage - Load -
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package 24-SOIC
Base Product Number LS7290
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0000
Standard Package 31 pcs
Win Source Part Number 1382548-LS7290-S
Ultra Librarian 3D Model Ultra Librarian LS7290-S CAD Model

Description

The LS7290-S is a motor driver controller integrated circuit (IC) from LSI Computer Systems.

  • Application: Power Management, General Purpose
  • Output Configuration: Half Bridge
  • Technology: Power MOSFET
  • Interface: PWM
  • Motor Type: Bipolar, Unipolar Stepper
  • Voltage Supply: 3V to 5.5V
  • Operating Temperature: -20°C to 85°C
  • Package: 24-SOIC
  • Mounting Type: Surface Mount
