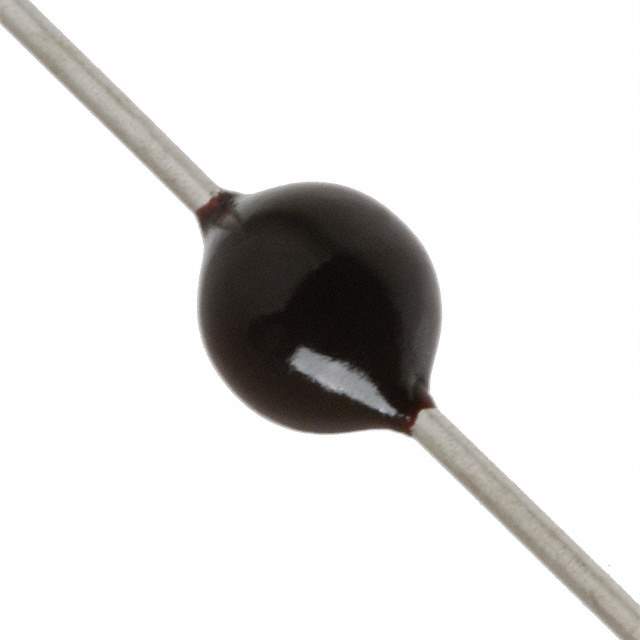

V22MA1A Real Image
Same model may have multiple batches, images only for reference.

V22MA1A

Part No V22MA1A
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 40A SOD83A AXIAL
Datasheet
V22MA1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Varistor Voltage (Min) 16V
Varistor Voltage (Typ) 22V
Varistor Voltage (Max) 28V
Current - Surge 40A
Energy 0.09J
Number of Circuits 1
Maximum AC Volts 10VAC
Maximum DC Volts 15VDC
Capacitance @ Frequency 410pF @ 1MHz
Temperature Range - Operating -55°C to 85°C (TA)
Mounting Through Hole
Dimension SOD-83A Axial
Win Source Part Number 397095-V22MA1A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian V22MA1A CAD Model

Description

The Littelfuse Inc. 397095-V22MA1A is a circuit protection component with a capacitance of 410pF @ 1MHz and a varistor voltage of 22V.

  • Maximum Surge Current: 40A
  • Maximum Energy: 0.09J
  • Mounting: Through hole
  • Circuits: One
  • Varistor Voltage Range: 16V to 28V
  • Maximum AC Voltage: 10VAC
  • Maximum DC Voltage: 15VDC
  • Operating Temperature Range: -55°C to 85°C (TA)
  • Dimension: SOD-83A axial
  • Popularity: Medium
