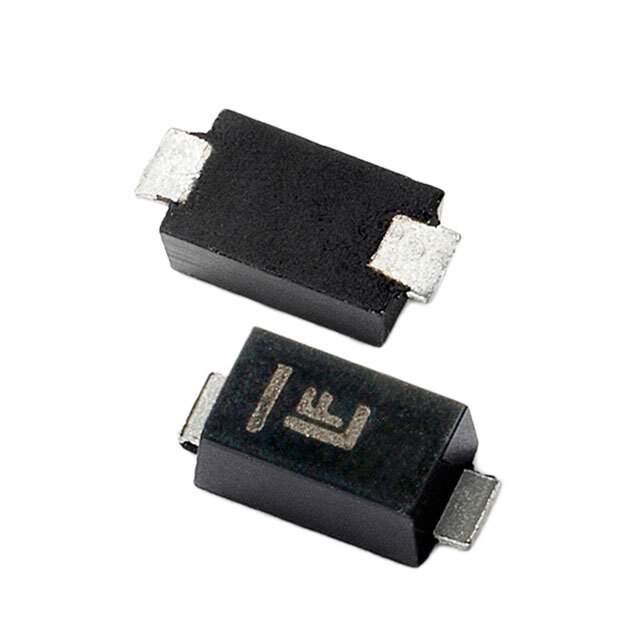

TPSMF4L22A

Name: TPSMF4L22A
Brand: Littelfuse Inc.
SKU: 978729
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TPSMF4L22A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 22VWM 35.5VC SOD123FL / 35.5V Clamp 11.3A Ipp Tvs Diode Surface Mount SOD-123F
Datasheet	TPSMF4L22A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, TPSMF4L
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	11.3A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	SOD-123F
Supplier Device Package	SOD-123F
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	F7542CT,F7542TR,-TPSMF4L22A,F7542DKR
Standard Package	3,000
Win Source Part Number	978729-TPSMF4L22A
Ultra Librarian 3D Model	Ultra Librarian TPSMF4L22A CAD Model

Alternative Products

Description

This is a TVS diode from Littelfuse Inc. with part number 978729-TPSMF4L22A.

Series: TPSMF4L
Designed for: Automotive applications
Channel: Unidirectional
Voltage Rating (Reverse Standoff): 22V
Voltage Rating (Breakdown): 24.4V
Power Rating (Peak Pulse): 400W
Peak Pulse Current: 11.3A @ 10/1000µs
Packaging: Tape and reel
Mounting: SMD (SMT)
Operating Temperature: -55°C to 150°C (TJ)
ECCN: EAR99 compliant
