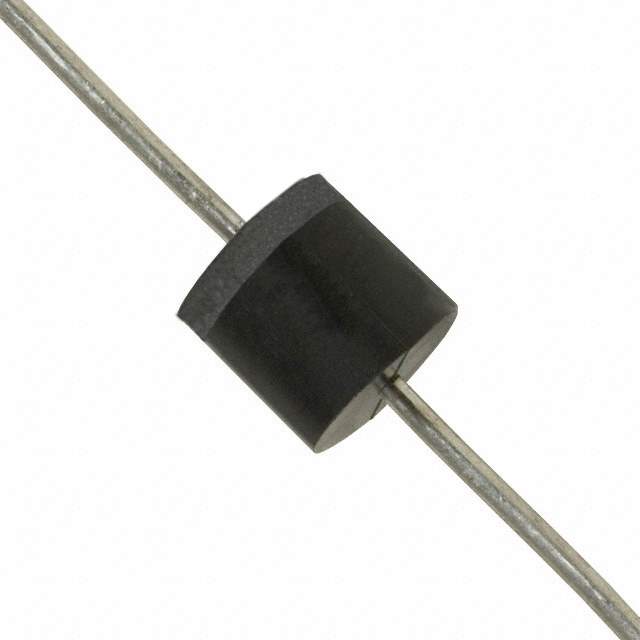

TP5KP36A Real Image
Same model may have multiple batches, images only for reference.

TP5KP36A

Part No TP5KP36A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 36VWM 58.1VC P600 / 58.1V Clamp 87.8A Ipp Tvs Diode Through Hole P600
Datasheet
TP5KP36A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TP5KP
Package Tape & Reel (TR),Cut Tape (CT)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 58.1V
Current - Peak Pulse (10/1000µs) 87.8A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F7625CT,F7625TR,-TP5KP36A
Standard Package 800
Win Source Part Number 1100720-TP5KP36A
Ultra Librarian 3D Model Ultra Librarian TP5KP36A CAD Model

Description

The Littelfuse Inc. 1100720-TP5KP36A is a zener diode that is designed for automotive applications.

  • Reverse Standoff Voltage: 36V
  • Breakdown Voltage: 40V
  • Clamping Voltage: 58.1V @ 87.8A
  • Peak Pulse Power: 5000W
  • Package: P600
  • Operating Temperature Range: -55°C to 150°C
  • Alternative Parts: Not available
