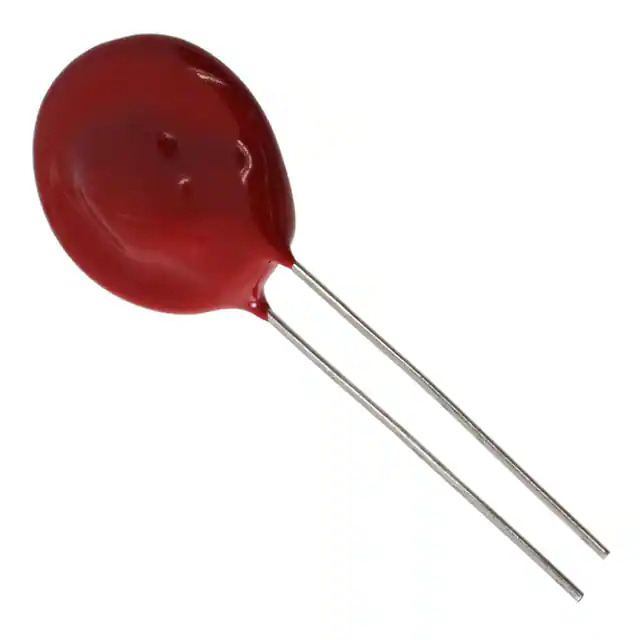

TMOV20RP550E Littelfuse Inc.
Same model may have multiple batches, images only for reference.

TMOV20RP550E

Part No TMOV20RP550E
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 910V 10KA DISC 20MM / 910 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Littelfuse Inc.
Series TMOV®
Package Bulk
Product Status Active
Maximum AC Volts 550 V
Maximum DC Volts 715 V
Varistor Voltage (Min) 819 V
Varistor Voltage (Typ) 910 V
Varistor Voltage (Max) 1.001 kV
Current - Surge 10 kA
Energy 360J
Number of Circuits 1
Capacitance @ Frequency 300 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Disc 20mm
Base Product Number TMOV20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361140-TMOV20RP550E
Ultra Librarian 3D Model Ultra Librarian TMOV20RP550E CAD Model

Description

The 1361140-TMOV20RP550E is a thermally protected transient voltage suppressor (TVS) varistor from Littelfuse Inc.

  • Series: TMOV®
  • Package: Bulk
  • Operating Temperature: -55°C to 85°C
  • Thermally Protected: Yes
  • Maximum AC Voltage: 550V
  • Maximum DC Voltage: 715V
  • Varistor Voltage: 819V to 1.001kV
  • Surge Current: 10kA
  • Energy Rating: 360J
  • REACH: Unaffected
  • ECCN: EAR99
