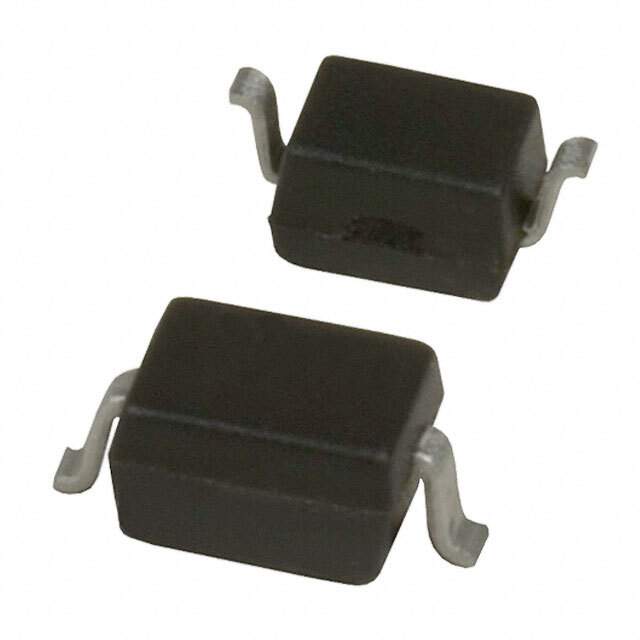

Same model may have multiple batches, images only for reference.

SP4020-01FTG

Name: SP4020-01FTG
Brand: Littelfuse Inc.
SKU: 802104
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP4020-01FTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 3.3V 21.8V SOD323
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Littelfuse Inc.
Packaging	Reel
Type	Steering (Rail to Rail)
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	3.3V (Maximum)
Voltage - Breakdown (Min)	3.5V
Voltage - Clamping (Maximum) at Ipp	21.8V (Typ)
Current - Peak Pulse (10/1000μs)	30A (8/20μs)
Power - Peak Pulse	750W
Power Line Protection	No
Applications	Ethernet
Capacitance at Frequency	2.5pF at 1MHz
Temperature Range - Operating	-40°C ~ 125°C
Mounting Style	SMD
Manufacturer Package	SC-76, SOD-323
Supplier Device Package	SOD-323
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802104-SP4020-01FTG
Ultra Librarian 3D Model	Ultra Librarian SP4020-01FTG CAD Model

Alternative Products

Description

This Littelfuse Inc. product is a high-quality electronic component designed for Ethernet applications. The component has the following specifications:

Win Source Part Number: 802104-SP4020-01FTG
Voltage Rating: 3.3V
Maximum Reverse Standoff Voltage: 3.5V
Power Peak: 750W
Peak Pulse Current: 30A @ 8/20μs
Capacitance: 2.5pF @ 1MHz
Channel: Unidirectional
RoHS Compliant: Yes
Manufacturer Pack Quantity: 3000
MSL Level: 1 (unlimited)
