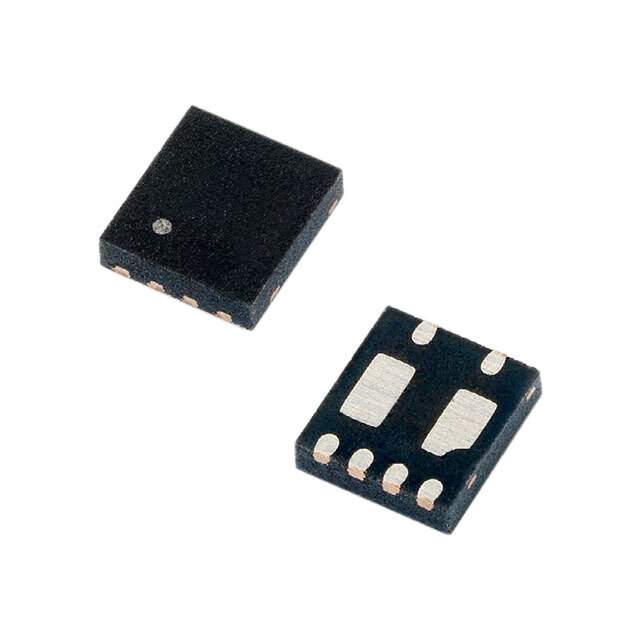

SP1255-01UTG Real Image
Same model may have multiple batches, images only for reference.

SP1255-01UTG

Part No SP1255-01UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 13.5VWM 28VC 6UDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features 28V Clamp 160A (8/20µs) Ipp Tvs Diode Surface Mount 6-µDFN (1.8x2)
Manufacturer Littelfuse Inc.
Series Automotive, AEC-Q101, SP1255P, SPA®
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 6-UFDFN Exposed Pad
Case / Package 6-µDFN (1.8x2)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F9935DKR, F9935TR, -SP1255-01UTG, F9935CT
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896899-SP1255-01UTG
Ultra Librarian 3D Model Ultra Librarian SP1255-01UTG CAD Model

Description

The Littelfuse Inc. SP1255-01UTG is a high-quality circuit protection component that is designed for use in automotive applications.

  • Clamp Voltage: 28V clamp
  • Peak Pulse Current: 160A (8/20µs)
  • Mounting Type: Surface-mount
  • Package: 6-UFDFN exposed pad package
  • Part Status: Obsolete
  • Category: Circuit Protection
  • Supply and Demand Status: Balance
  • Package Quantity: 3000
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
