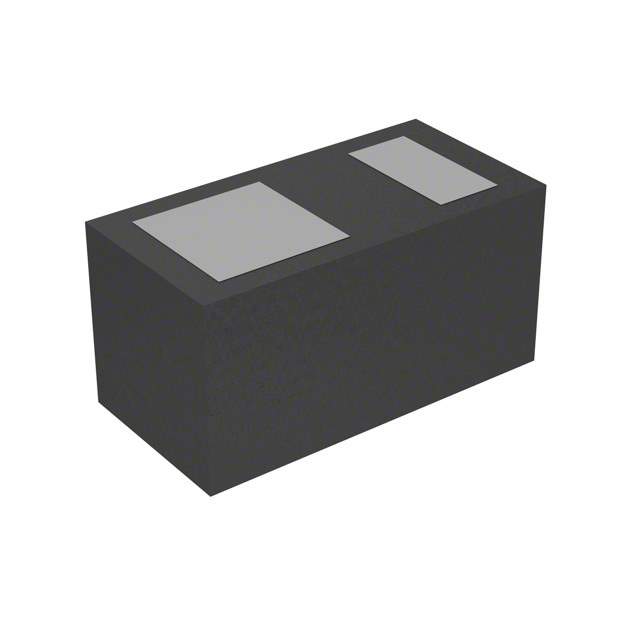

SP1009-01WTG Real Image
Same model may have multiple batches, images only for reference.

SP1009-01WTG

Part No SP1009-01WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 15.6VC 10A 0201 FLPCHP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 6V
Minimum Breakdown Voltage 7V
Max Clamping Voltage 15.6V (Typ)
Peak Pulse Current(Ippm) 10A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 30pF @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 0201 Flipchip
Win Source Part Number 1101145-SP1009-01WTG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SP1009-01WTG CAD Model

Description

The Littelfuse Inc. SP1009-01WTG is a zener type electronic component that is suitable for a variety of applications.

  • Packaging: reel - TR
  • Mounting: SMD (SMT) technology
  • Channel: bidirectional
  • Capacitance: 30pF @ 1MHz
  • Category: Circuit Protection
  • Status: currently active
  • Supply and Demand Status: sufficient
